Road To The Perfect Setup

You can imagine my feeling of joy that came with finally having custom-built KW Competition suspension fitted to Project GT-R.

I just love it when a well thought out plan comes together, and this was one of the biggest single modifications that I’ve been thinking about and working on. It’s literally taken years to realize what was needed to meet my needs, and the guys in the Motorsports department at KW in Germany looked at my suspension requirements and put together a one-off coilover kit for the car. But as you might know, it didn’t end right there.

You see, when I got chatting to KW I told them that I’d like to have a car that doesn’t make any excuses for its setup. The Nismo S-tune kit had, up until the point of fitting the KWs, been a good compromise. They worked well for city driving, twisty roads and the occasional track outing, but I never liked how they made the car sit, especially with my red RAYS Volk Racing TE37RTs fitted. The Skyline was a tad too high, something that came about through a safe ride height that didn’t screw up geometry too much and allowed for decent clearance. But you can’t have it all, right?

project_gtr_kw_hls_fitting_dino_dalle_carbonare_02

Essentially, I wanted a car that could handle at its best on the street and track, but didn’t want it to be scraping all over the place because of the lowered ride height. With the BNR34 this gets even more complicated as there are a couple of aerodynamic appendages that hang off the car, namely the front and rear diffusers (for the V-spec models at least).

How could I achieve this? Simple, by making full use of the technology that’s available now, and there is much to be learned from manufacturers of high-end supercars and the lift systems they employ to momentarily bump ride height of say the front axle. It’s the perfect solution, but it wasn’t until I borrowed Hashimoto Corporation’s Pandem-kitted R35 GT-R demo car some time back that I realized just how effective KW’s take on the whole lift dilemma really was. As the name suggests, KW’s Hydraulic Lift System (HLS) uses pressurized hydraulic fluid to expand the cups mounted on the dampers. It’s an extremely compact system; there’s no need for bulky tanks like on some air-based systems, and it’s both instantaneous and very quiet.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_09

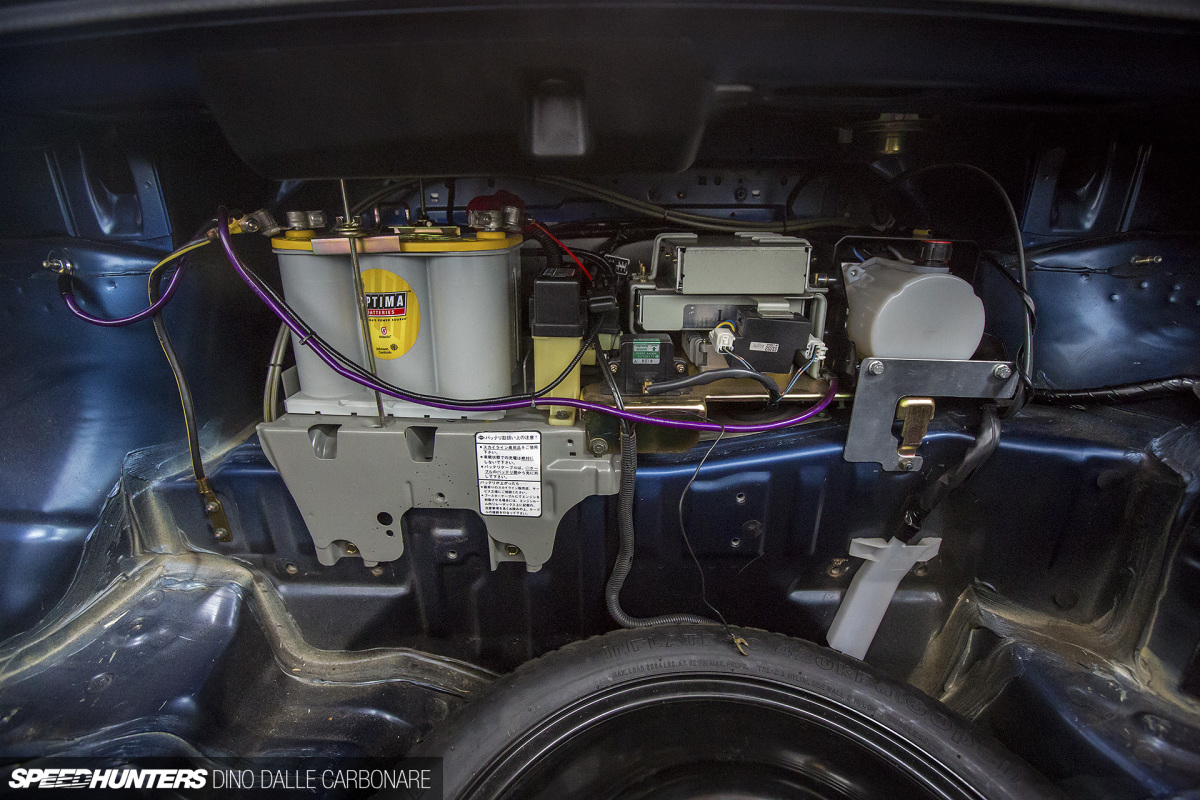

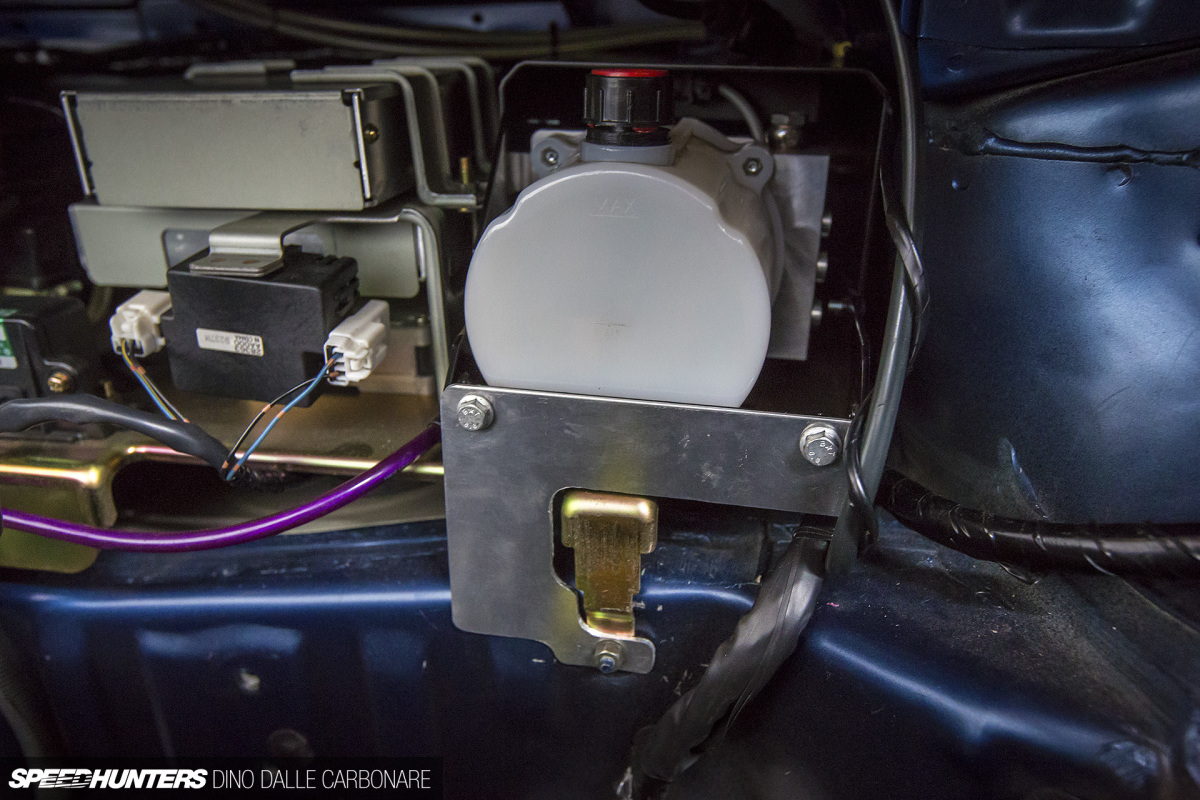

The fact it could be mated to the custom suspension that KW was building for was the icing on the cake. I really lucked it with the the fitting too, because aside from the cups and braided lines that make up the ancillaries of the system, the main pump/tank unit is extremely compact, meaning it it could squeeze into the only remaining bit of space in the portion of trunk where the R34’s Attesa and A-LSD modules are located, along with the battery. Kawanishi-san made up a custom bracket and in no time the pump assembly was secured in place.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_11

This section of the trunk is normally hidden away by a massive vertical steel plate which makes up the fake back of the space, so not only was there room for the pump/tank but it’s totally hidden away too. This perfectly fits one of main themes for the upgrades I’m making to Project GT-R: keeping it looking as stock as possible and hiding stuff that just doesn’t need to be shown.

While I was shooting in the trunk, I thought I’d grab a shot of the R34’s yaw sensor mounted in the very center. Yep, it’s made by Mitsubishi, so I wonder if it’s the same item that was used in the Lancer Evolution VI? Maybe some Evo guys will be able to confirm or not…

Laying The Lines

project_gtr_kw_hls_fitting_dino_dalle_carbonare_07

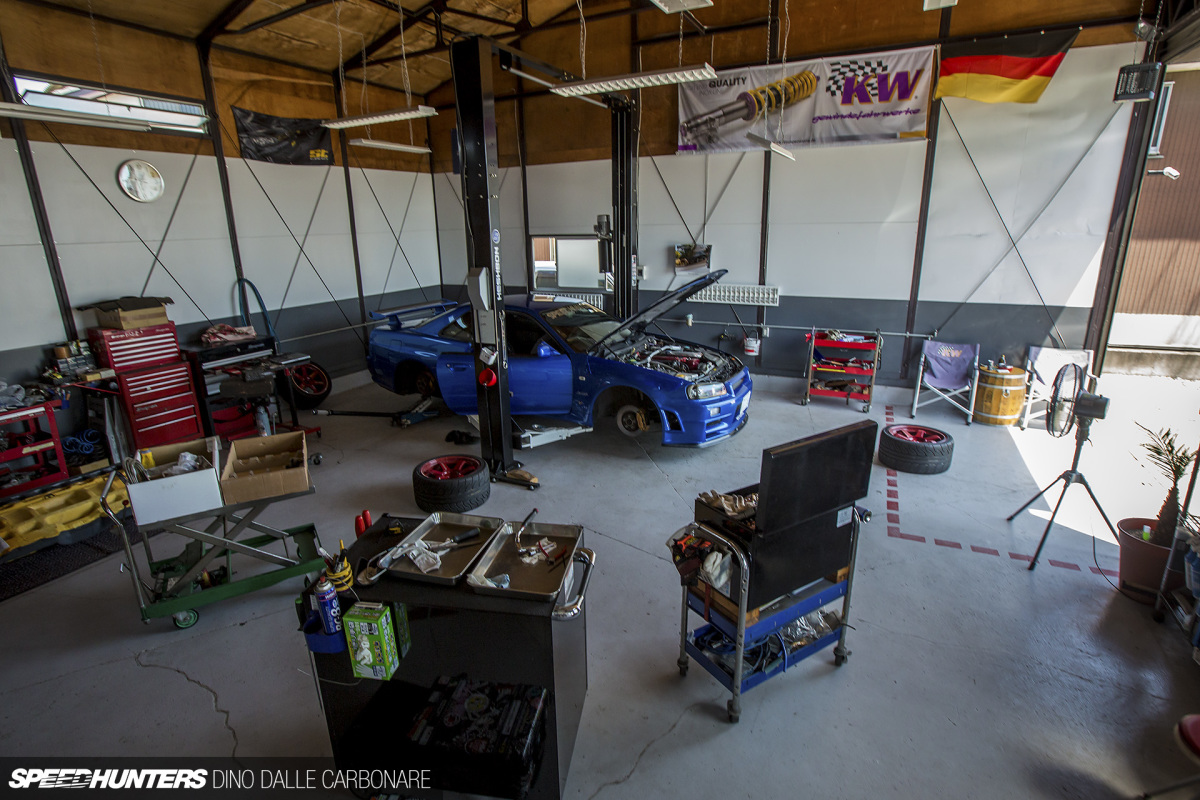

And so we move onto the install itself. Now, truth be told, Kawanishi-san did his best to make full use of the time the car was at his shop, which meant doing parts of the HLS installation while I wasn’t there.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_12

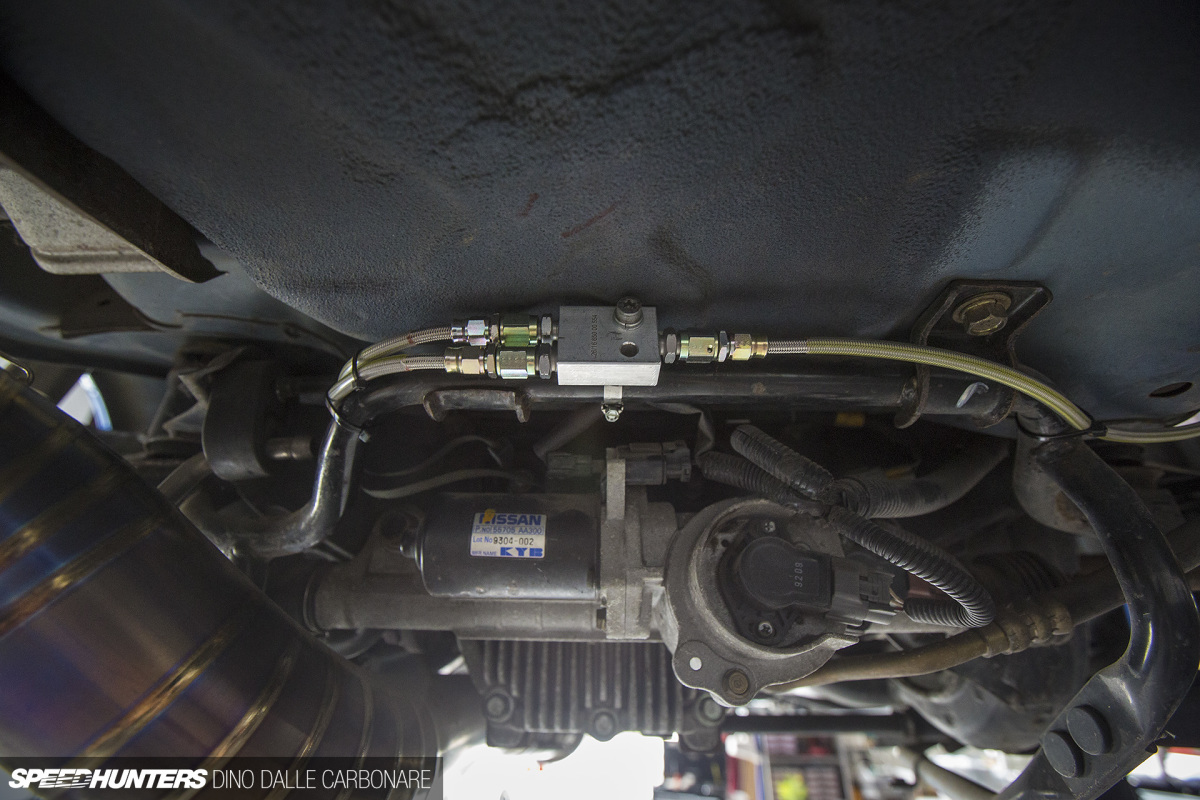

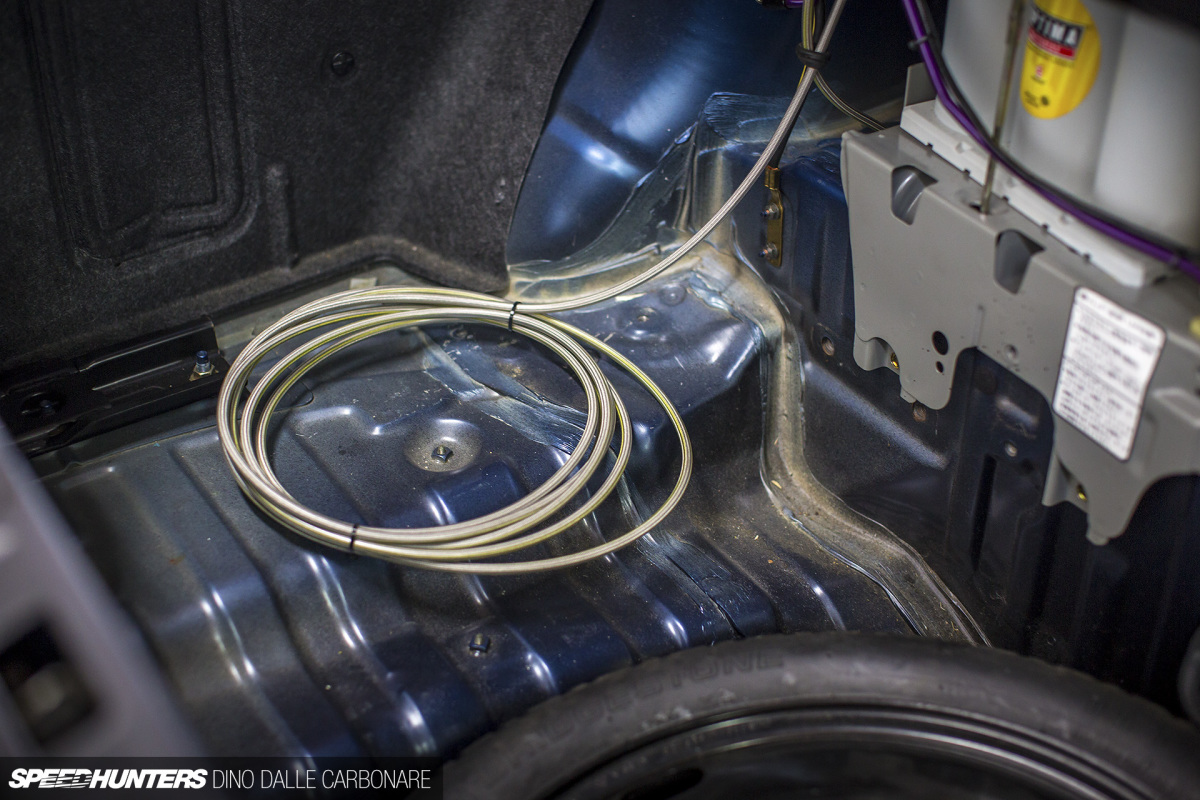

Before my next visit he had already securely mounted the 2-way split valve underneath the car, cut the braided hydraulic lines to length, and added the fittings.

Kawanishi-san had also run the longest bit of line from the pump, right alongside the brake lines that run under the car.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_04

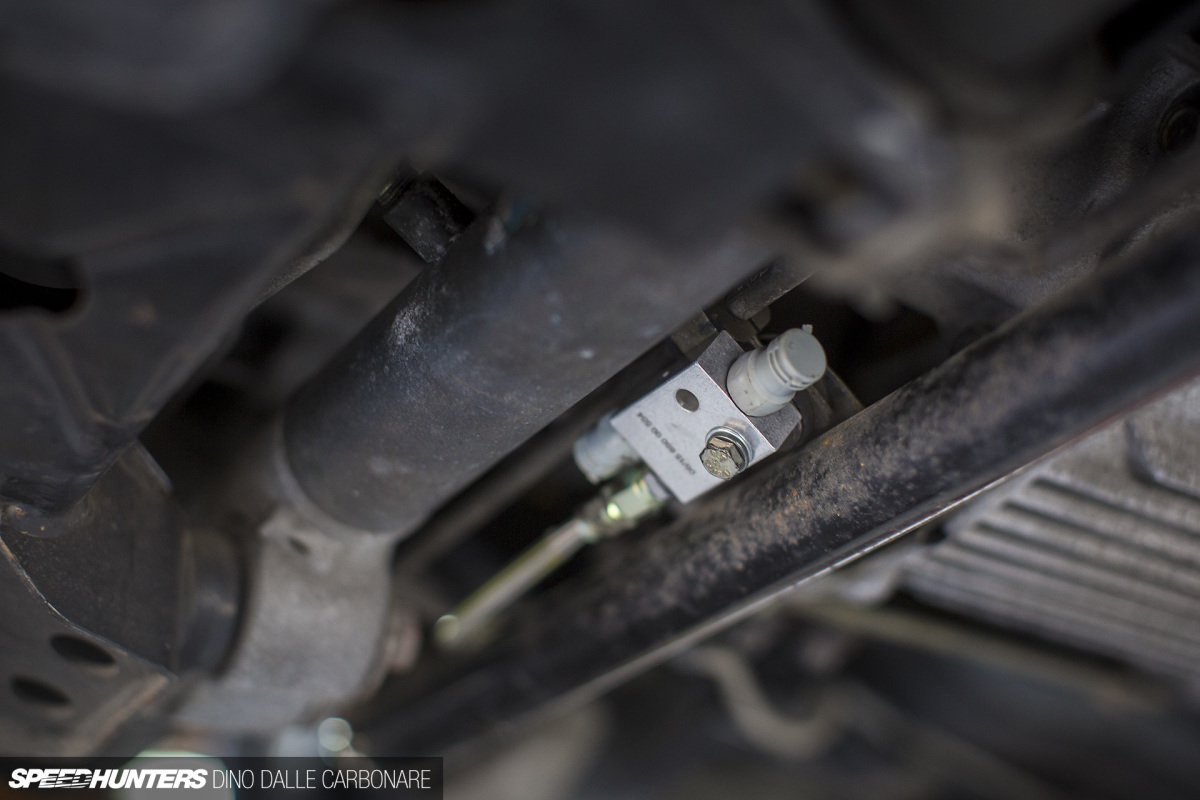

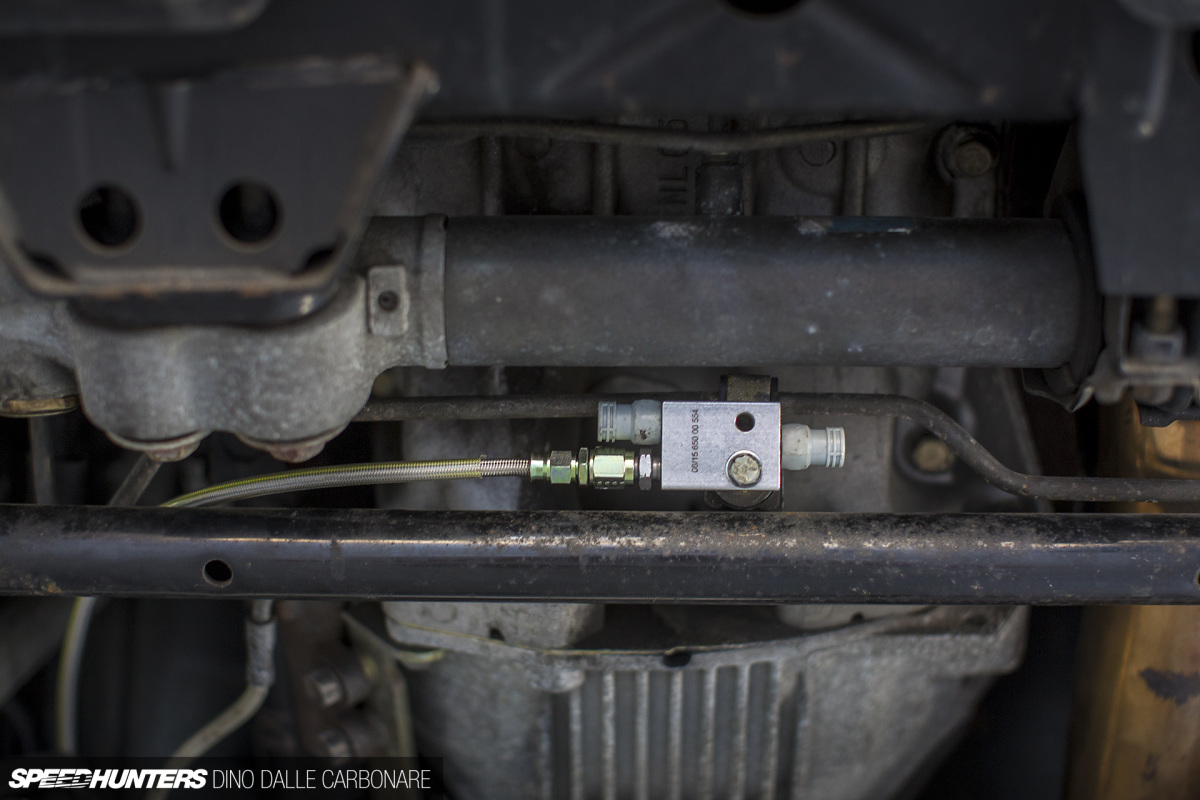

These continue all the way to the front where a valve splits the flow of fluid to the left and right HLS cups.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_05

The remainder of the work would entail cutting the lines to size and adding the required fittings to connect everything up.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_13

With no time to waste, Kawanishi-san got cutting!

All the parts for the install were included in the HLS fitting kit – we just had to add around 50cm of extra line to ensure that it would all be laid out as cleanly and neatly as possible. Kawanishi-san’s expertise here definitely made the difference; he fits KW HLS systems to many imports including Porsches and Audis, so he can do most of the work with his eyes closed.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_23

Here you can see a coupler attached to one of the front cups. One thing that you will probably be wondering is if the extension of the cups would impact on damping performance, and the simple answer to that would be no. That’s because when extended there is no compression of the cylinder unit, nor a change of spring rate. The roots of hydraulic lift systems also come from motorsports; at the end of the ’90s when DTM/ITC race series cars required a hydraulic lifter, KW adapted this technology further for street use to have a hydraulic lifter bump ride height by 45mm.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_16

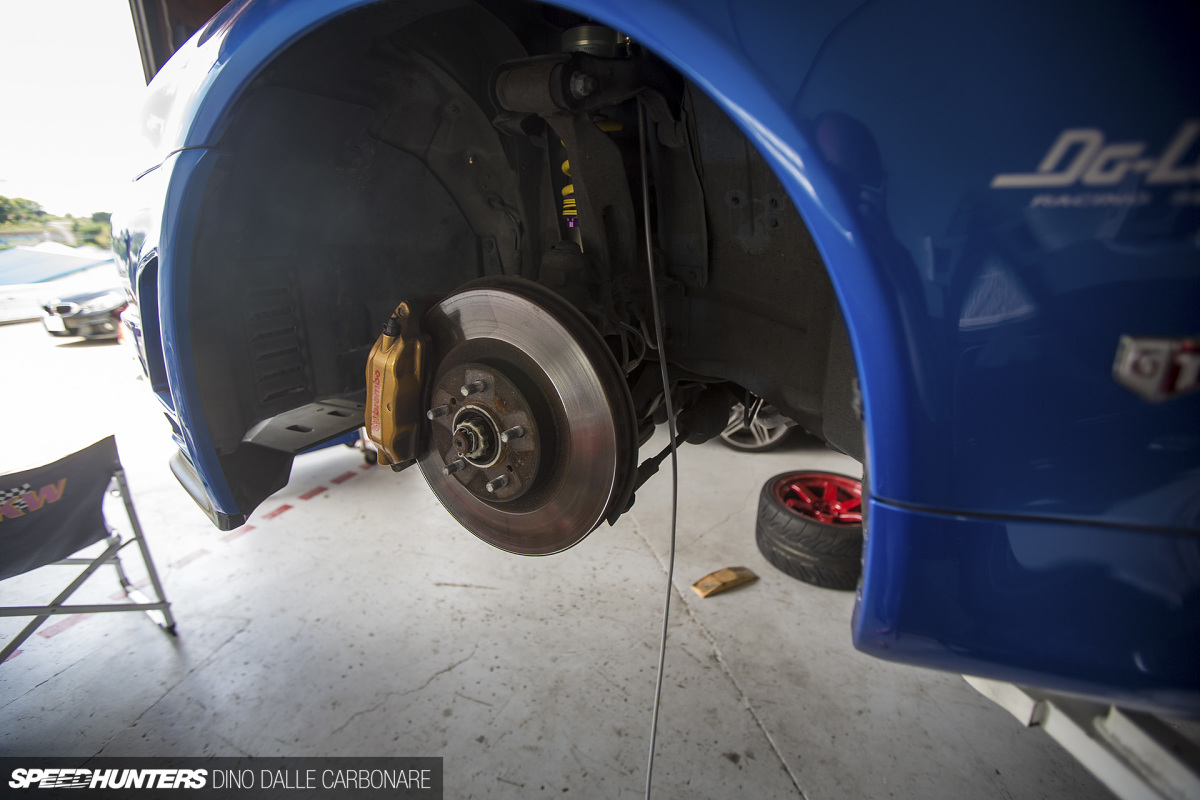

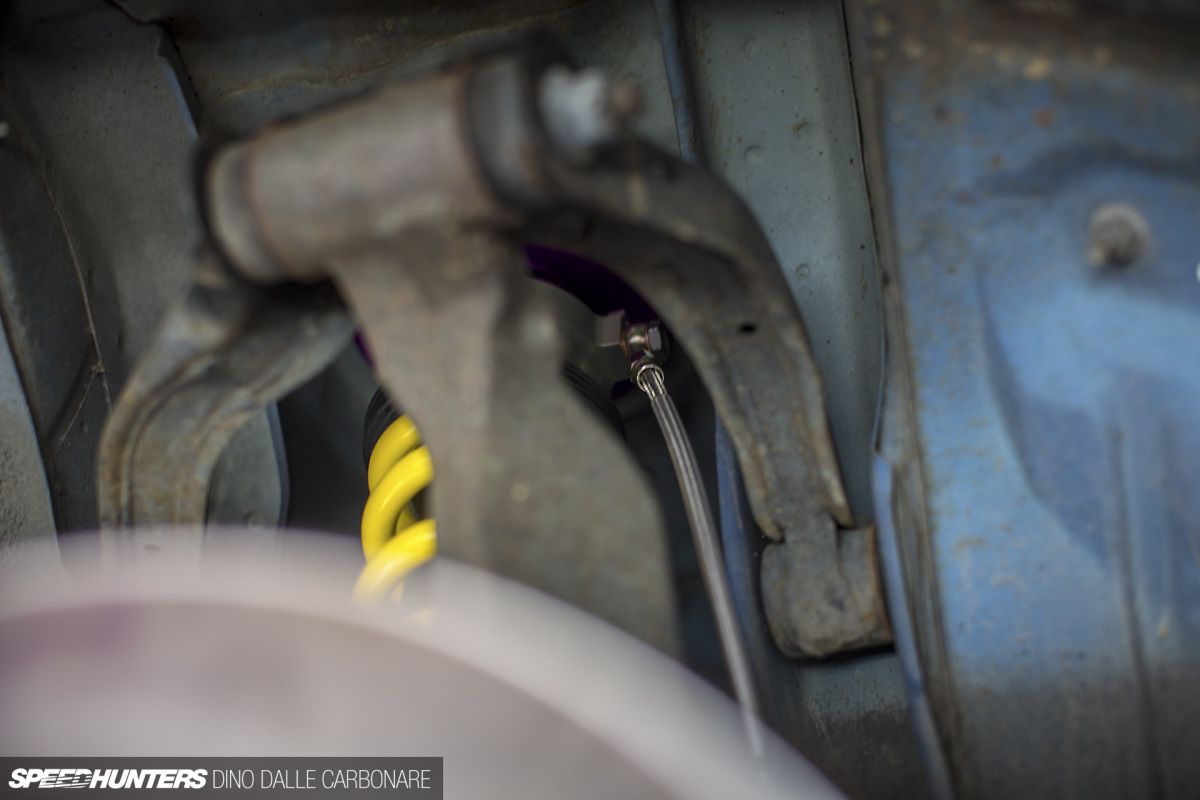

A wider shots shows you the line dropping down from the damper.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_20

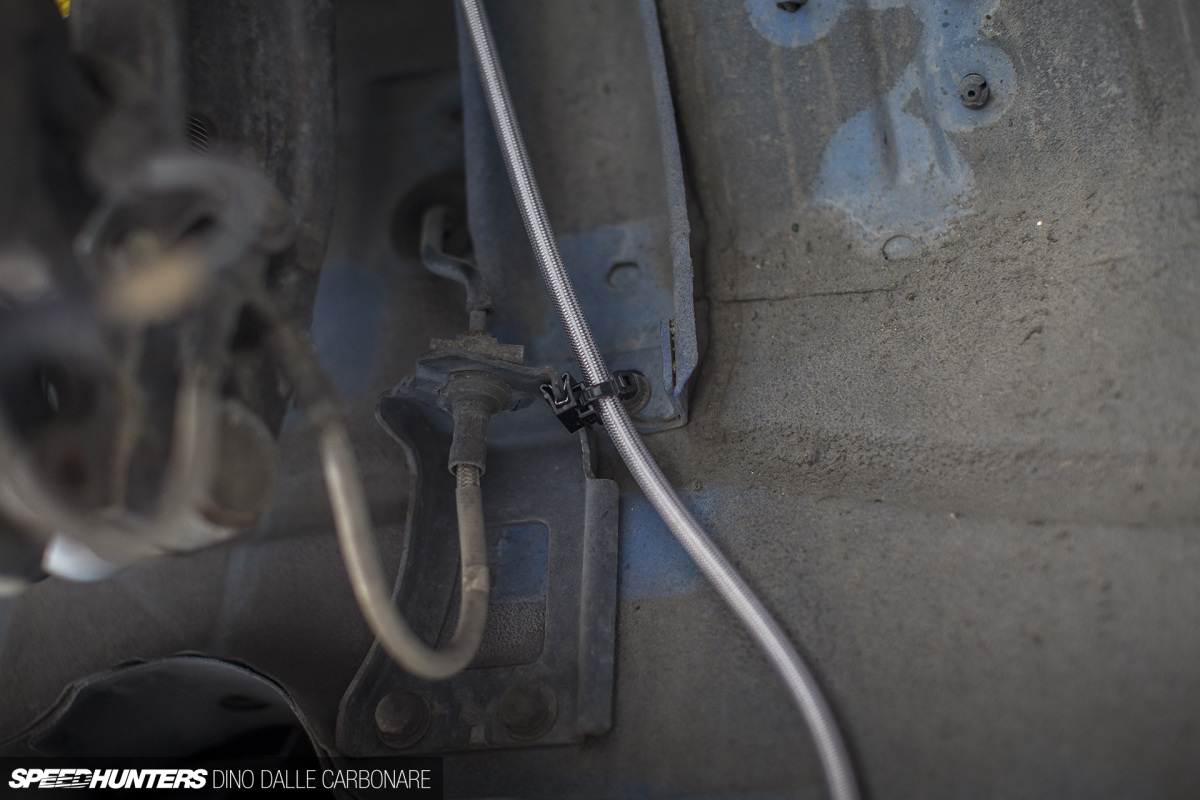

The following step is when those handy zip-ties with the metal grip fasteners come into play to secure the lines tightly against the inside of the wheel arch. And don’t worry, once the wheels with chunky 295-section tires were fitted back on clearance was checked at both the left and right bump stops.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_17

The line then gets pulled towards the splitter valve, ensuring that you’ve allowed enough slack for it to then be secured with more zip-ties.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_18

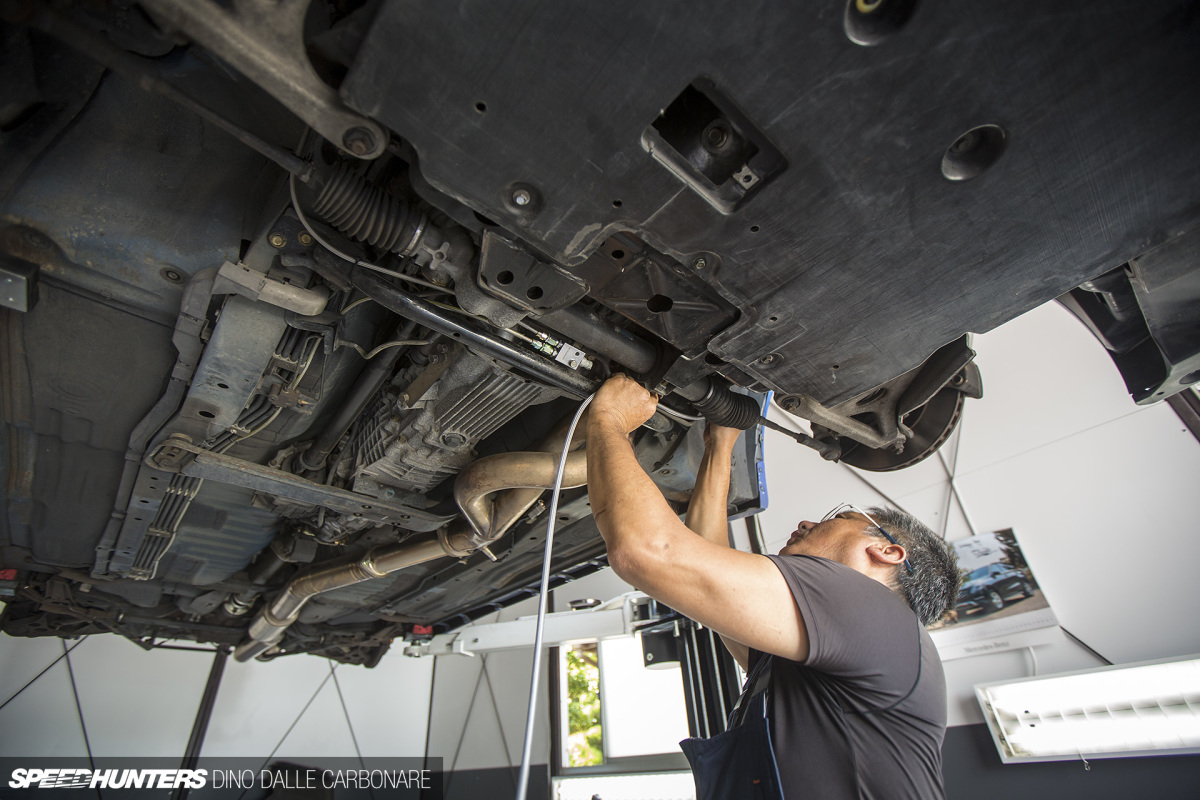

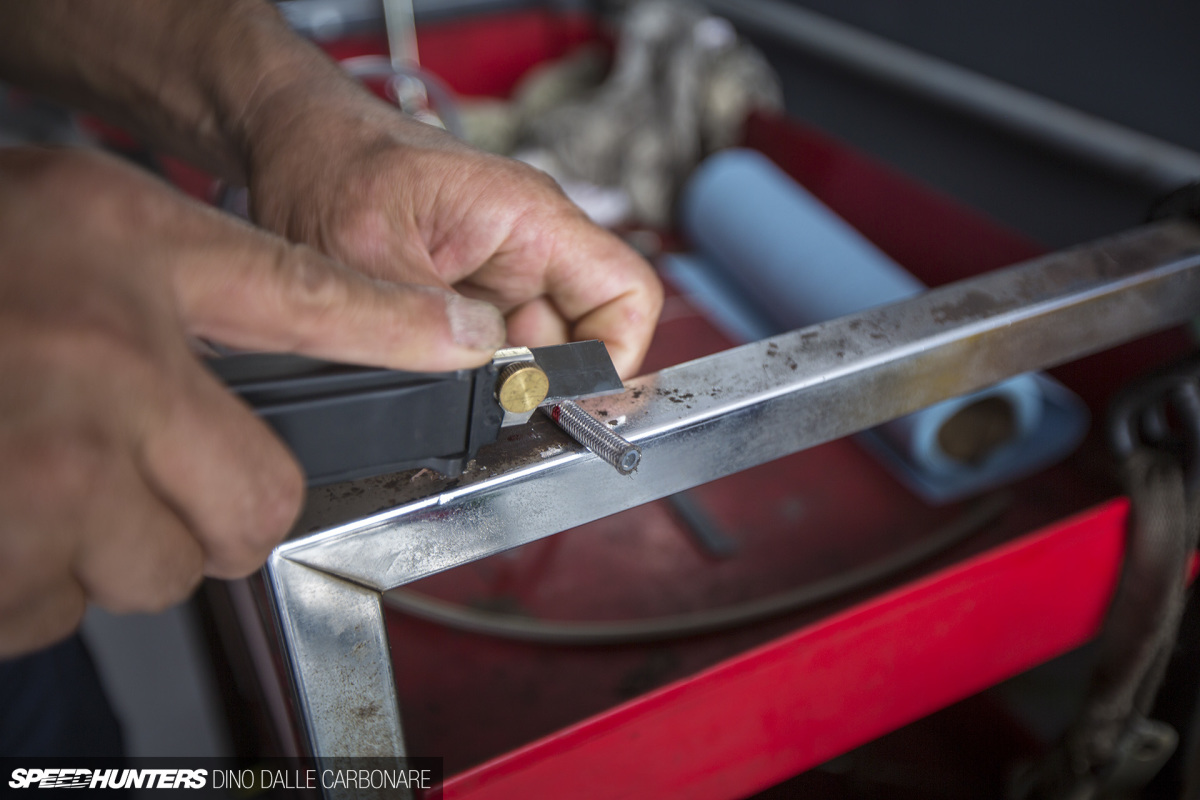

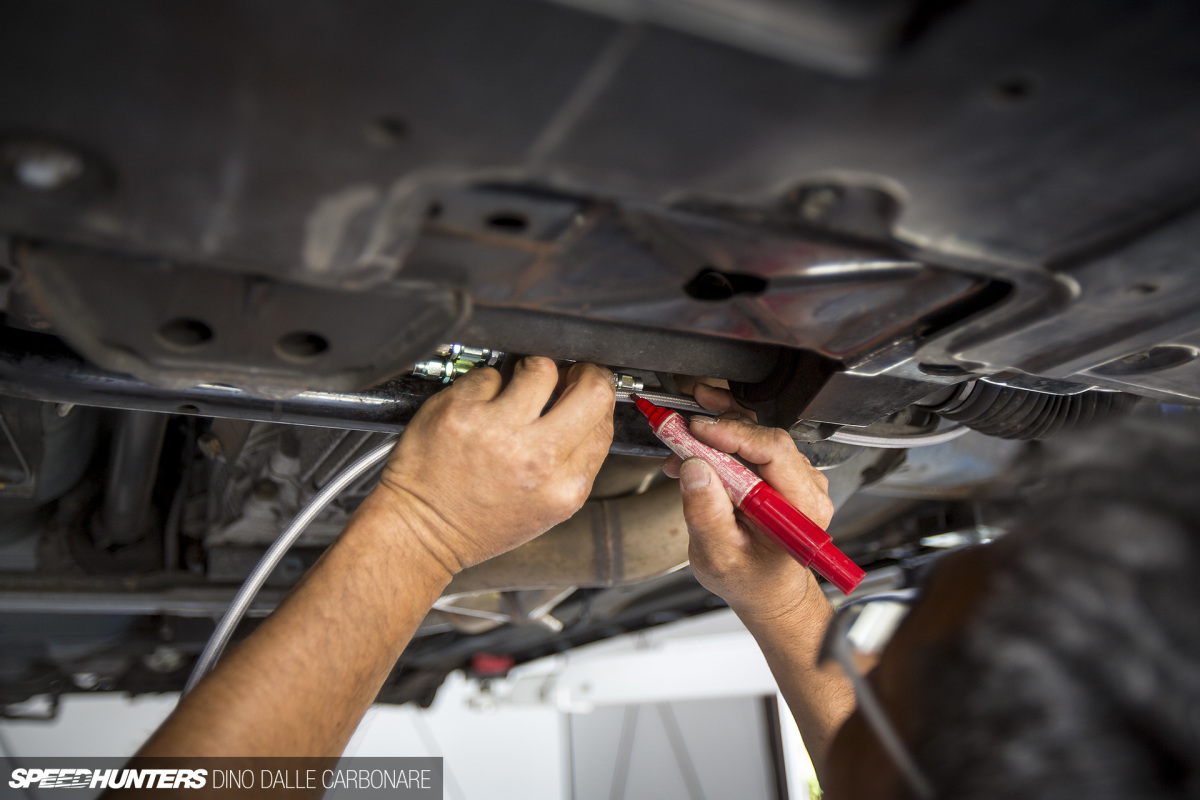

Here you can see Kawanishi-san adding a little mark to where he needed to cut the line.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_19

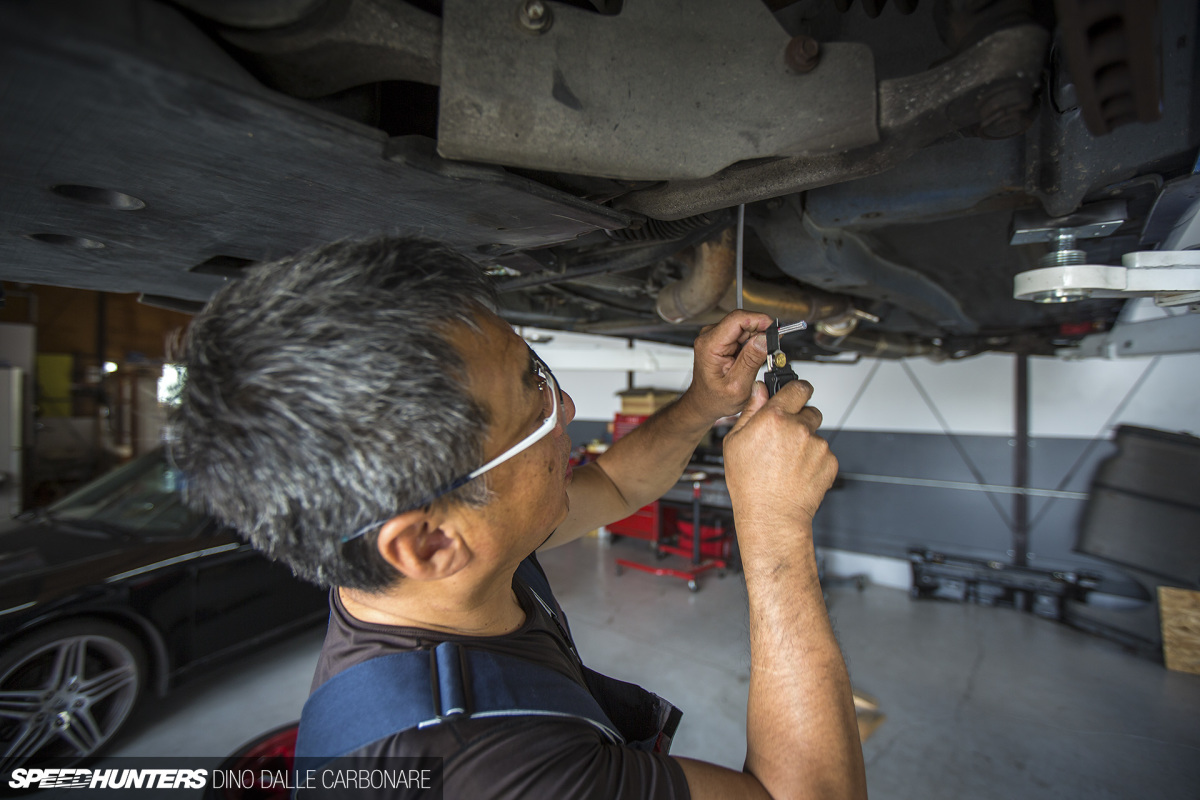

Once cut, the outside plastic sleeve is trimmed to allow just enough of the metal braided mesh to be pulled back and revel the inner rubber hose.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_21

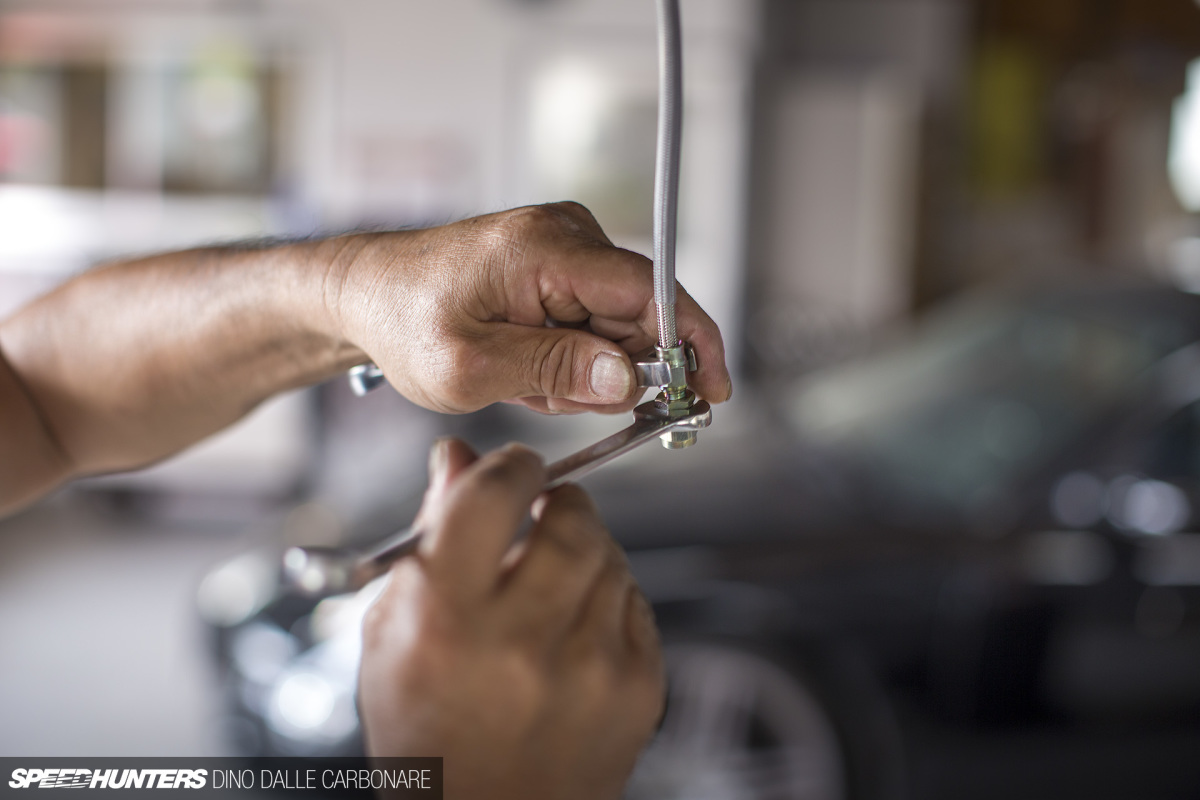

The fitting is added and then tightened in place.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_22

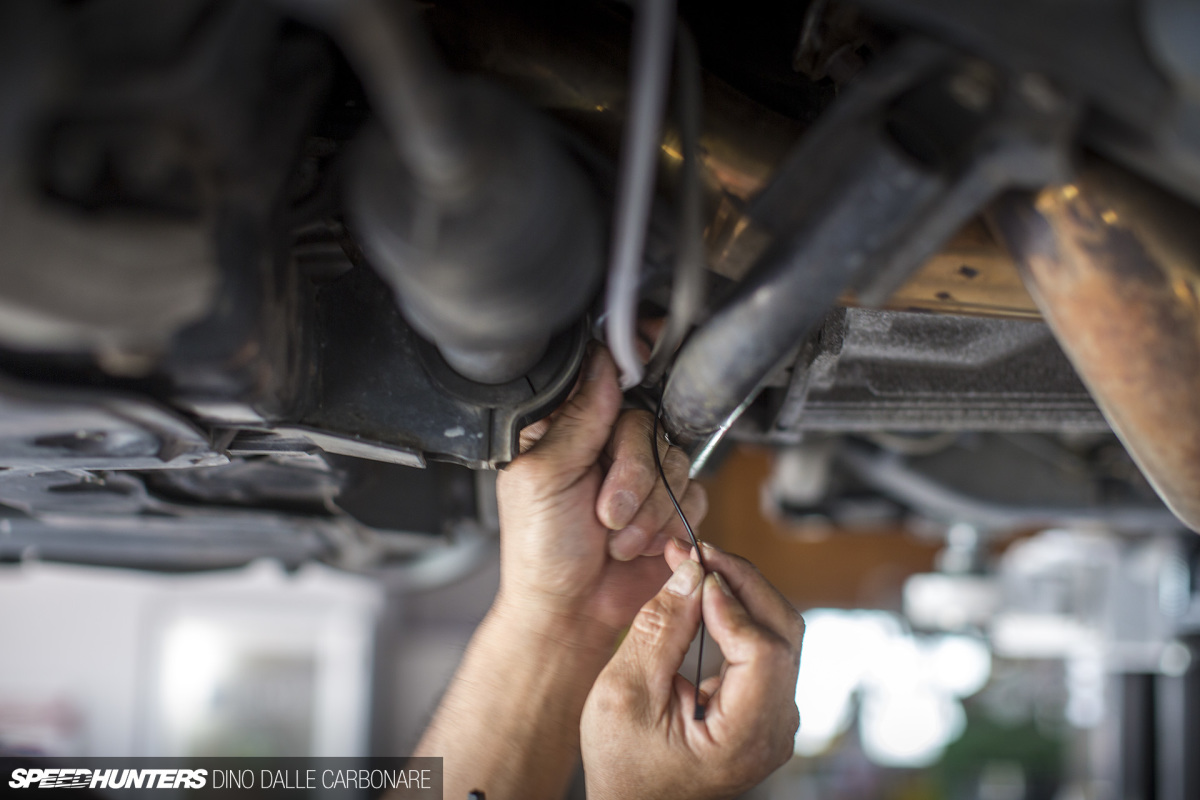

Once plumbed in, zip-ties were added before everything was triple-checked.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_10

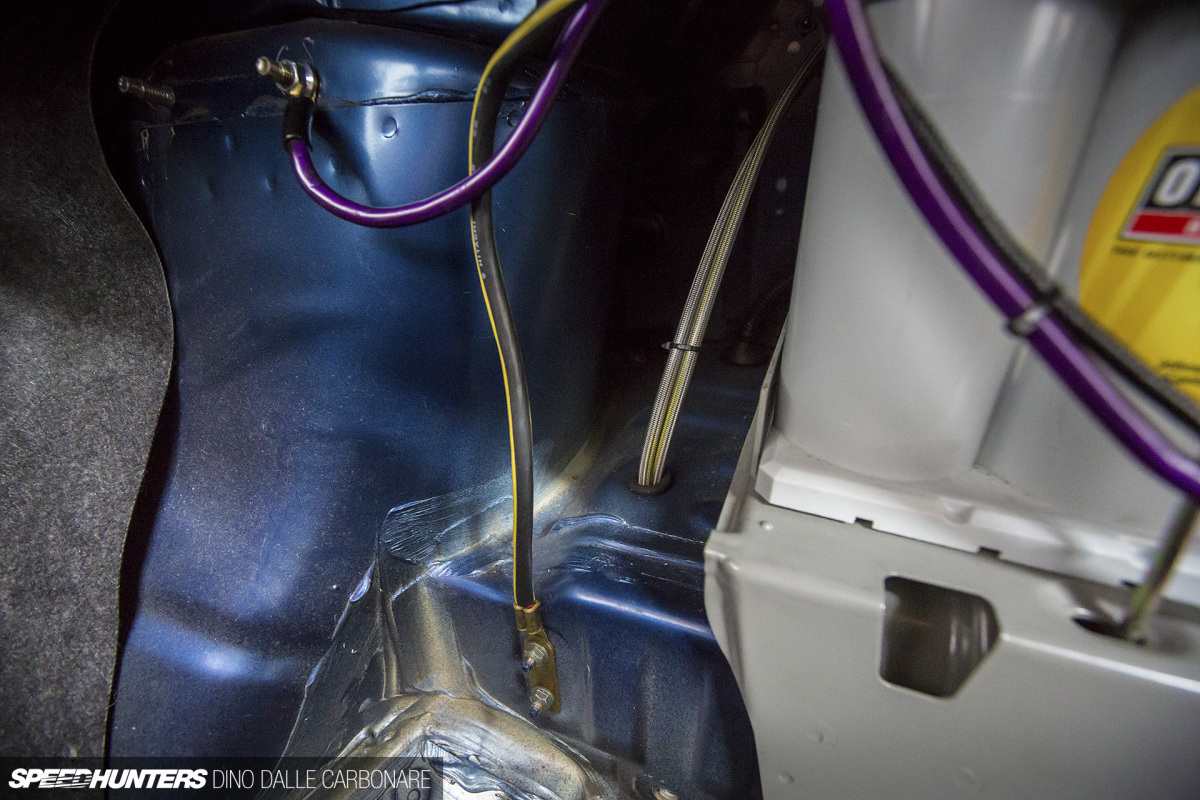

I loved how Kawanishi-san even cleaned up the two lines leaving the trunk room, using a rubber grommet to seal them through a factory hole.

Hydraulic Fluid In & We’re Good To Go

project_gtr_kw_hls_fitting_dino_dalle_carbonare_24

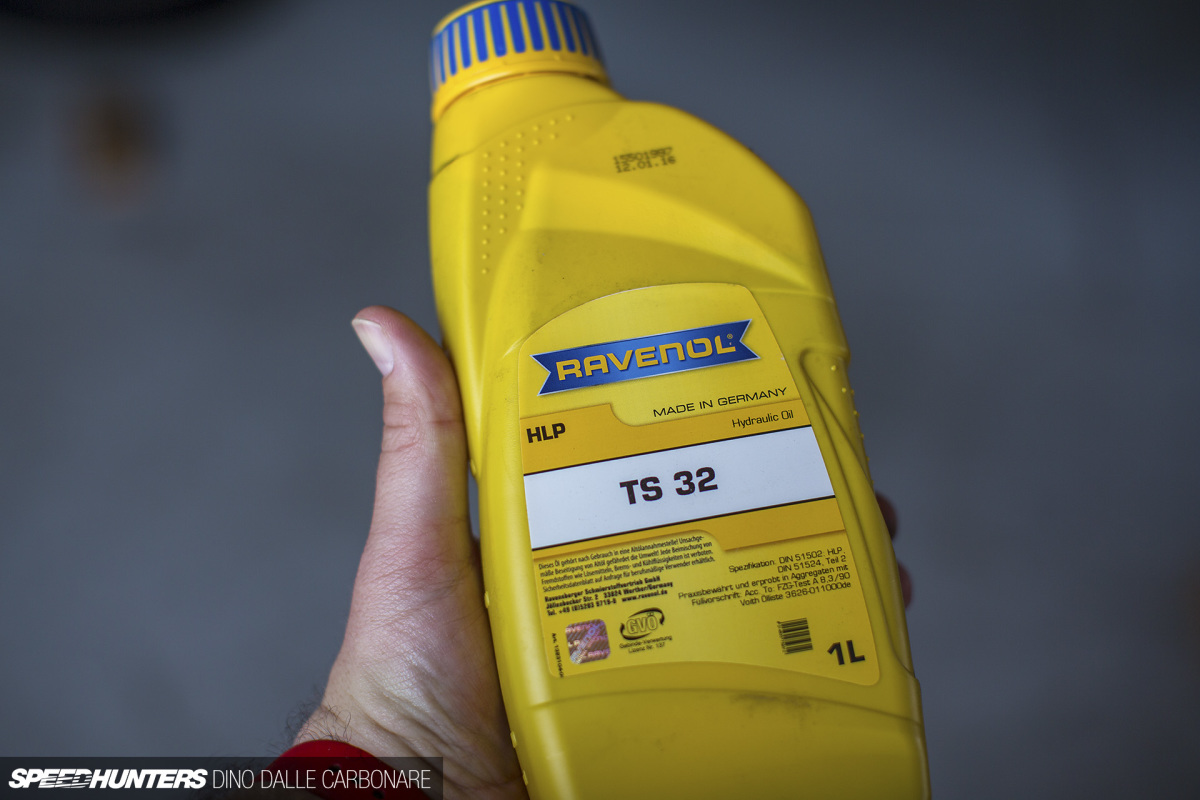

While air systems use, err… air, hydraulic systems use hydraulic fluid or oil. In the case of KW’s system, Ravenol TS32 is included as part of the package.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_25

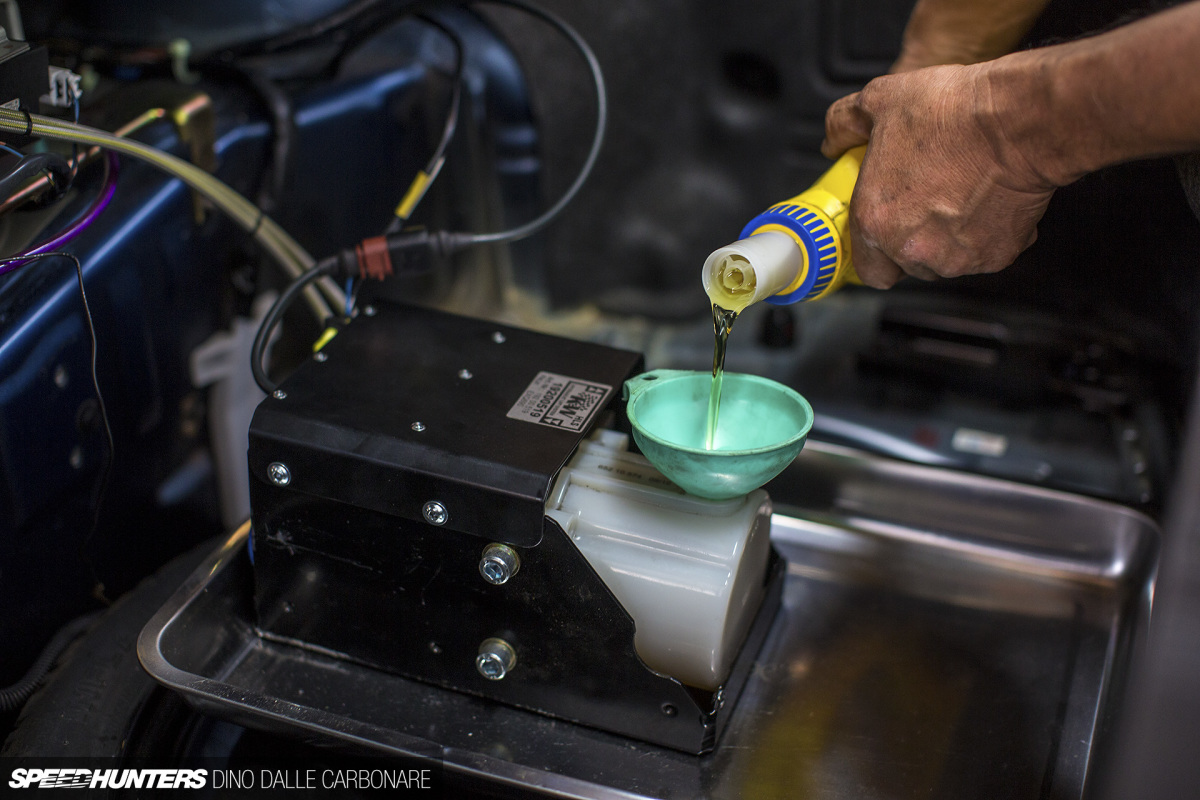

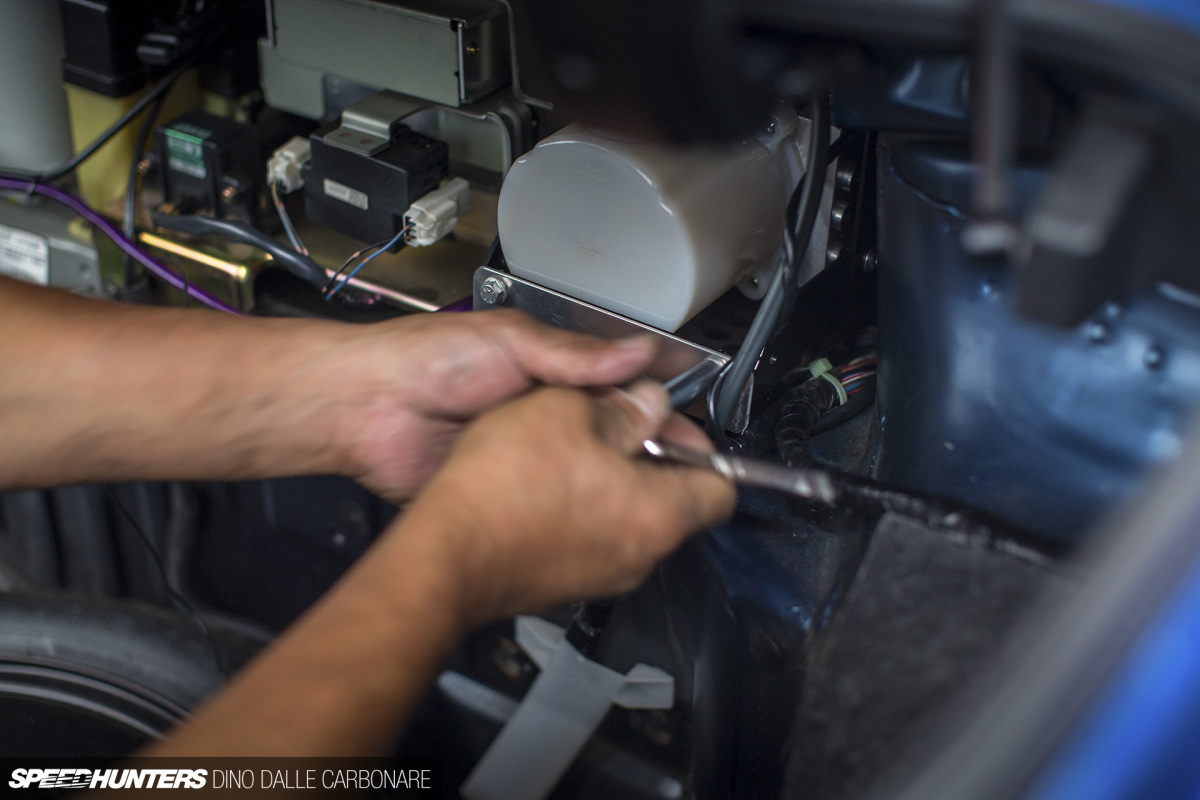

Not wanting to make a mess, Kawanishi-san unbolted the bracket that holds the pump/tank in place, moved it onto a meal tray and positioned it flat on top of the space saver so he could fill the tank properly.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_26

I didn’t really think much about it at the time, but it was cool to see that he had left enough slack in the lines behind the pump to allow for its removal. I bet you if I had done this job I’d have cut them way too short and ended up in a bad situation.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_27

Thankfully, I didn’t though. The tank was filled up to the top and then the ignition switched on.

And now we move into the cabin, where the underlying simplicity of the HLS system stretches to its control. To operate it there is only one button: you press it to lift the car and you press it again to drop it. There’s also a speed sensor which recognizes when the car is travelling at over 30km/h and drops the car automatically. A few test runs and both ends of the car were rising and dropping without issue, and there was only a faint buzz from the pump in the trunk during operation.

Before anyone addresses the button situation in the comments, let me explain why I had Kawanishi-san leave it unmounted in the coin tray. Nakamura-san at Worx Auto Alarm will mount it in due course, as right now we are trying to come up with a cool fitting arrangement with another button I’ll be installing. I thought it would be better to be done at the same time. Trust me, it will make sense once you see the update on that, which will come after the engine work.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_08

With all systems go, it was time to finish up and refit the parts that had to be removed for the install.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_30

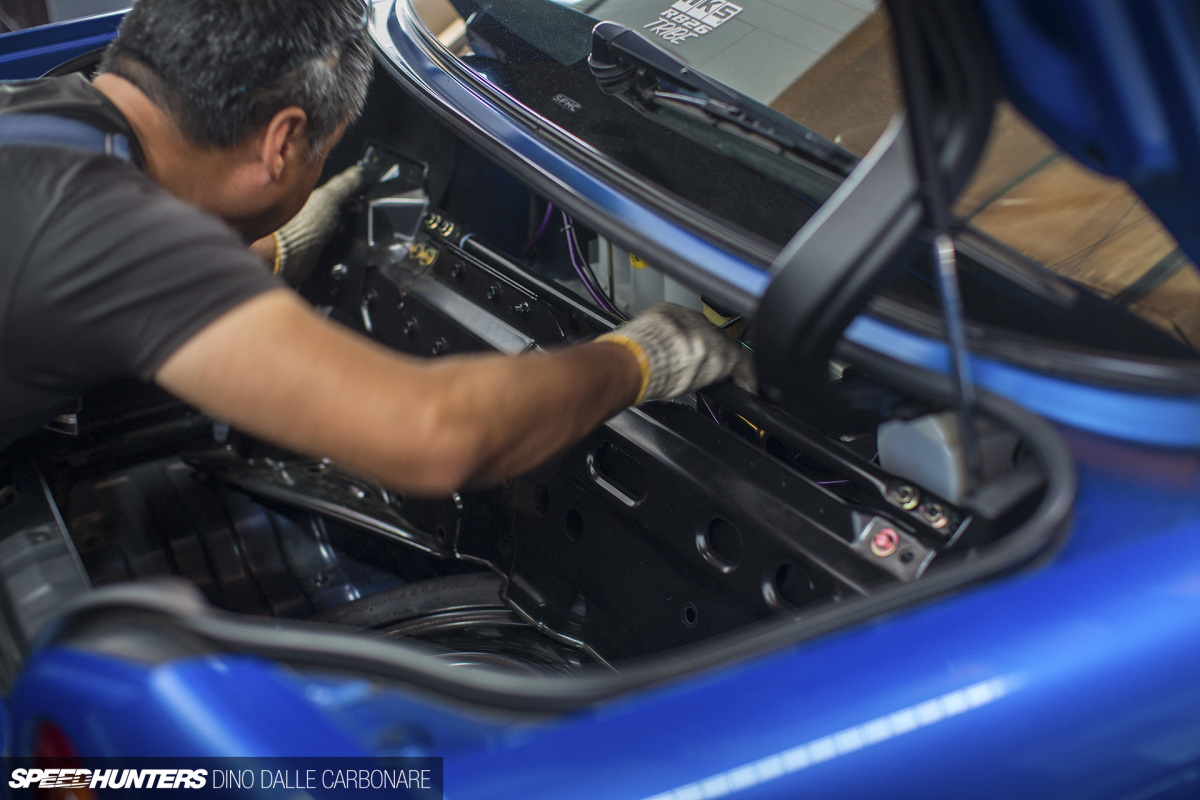

This included the massive steel trunk separator which I mentioned earlier, something that’s fixed in place by a ton of bolts.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_31

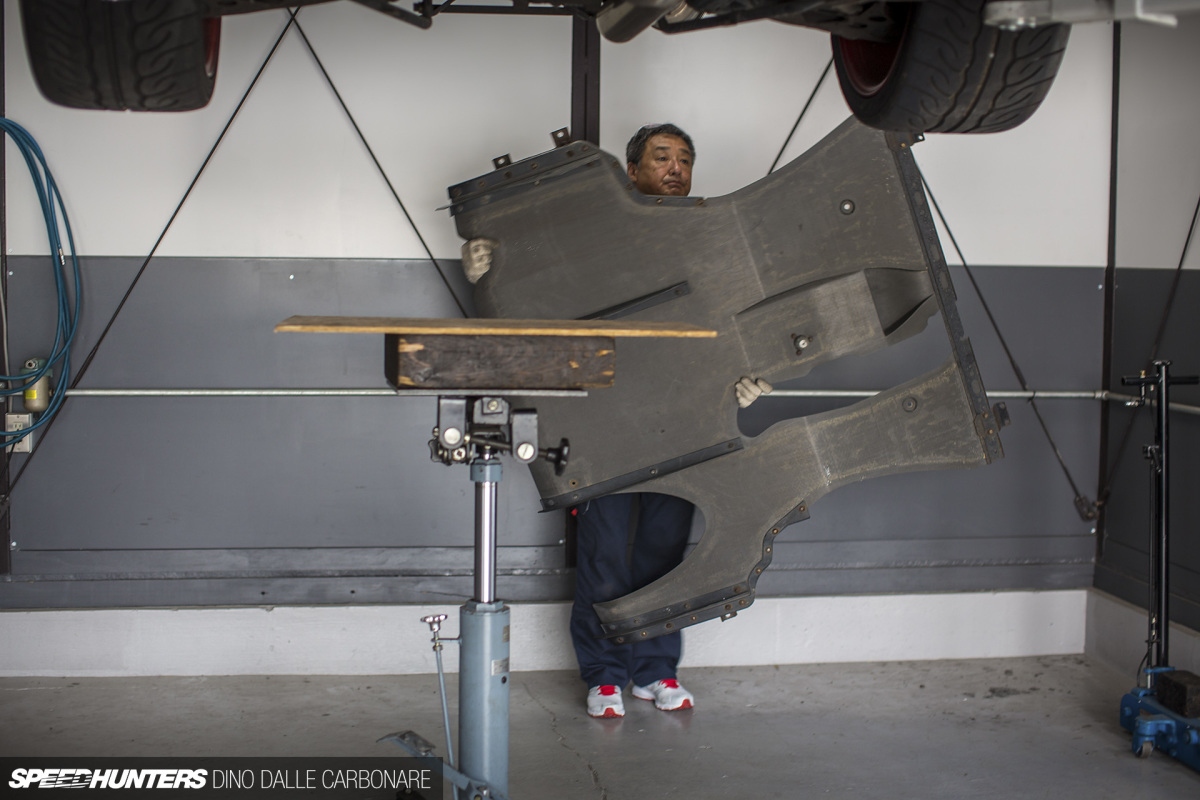

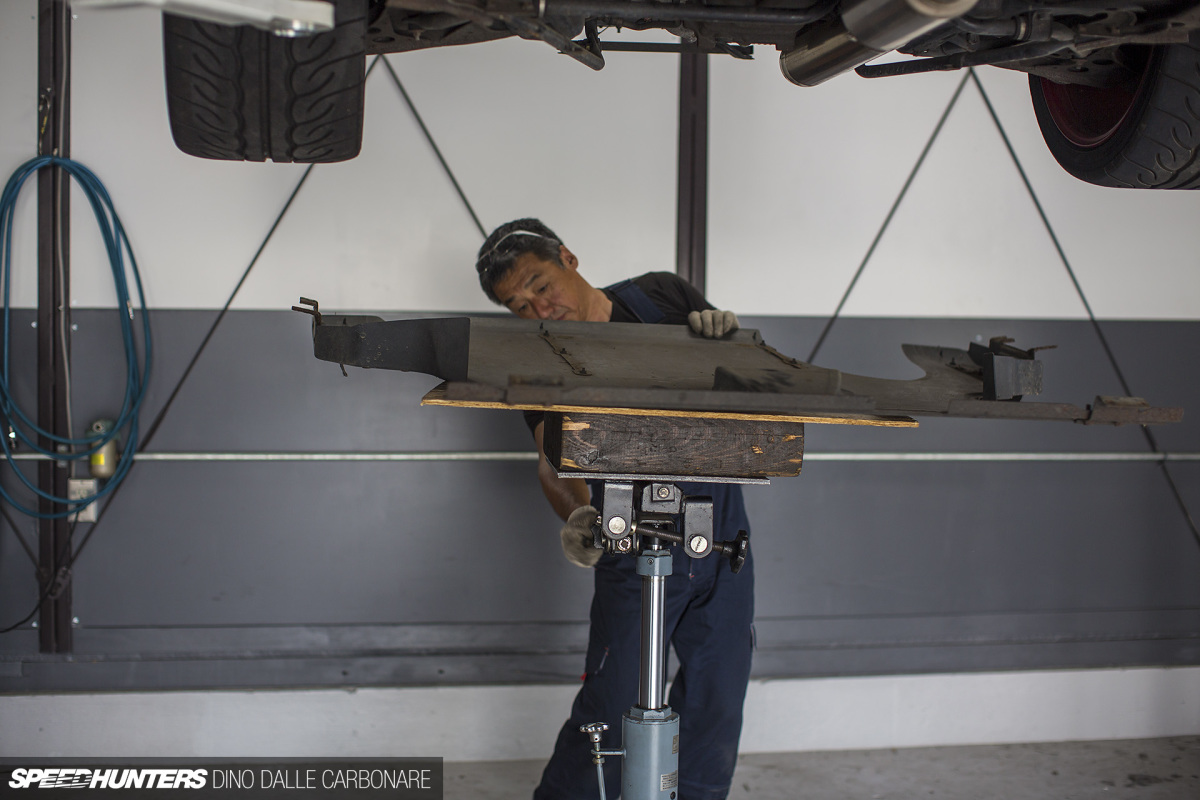

And then the V-spec’s instantly recognizable pièce de résistance, the rear carbon diffuser.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_32

It’s something that for me has always defined the R34, but boy is it a big pain the behind when you need to do something under the car. Same with the front, which is actually made of cheap ABS plastic so is continuously splitting along the main fuse line.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_33

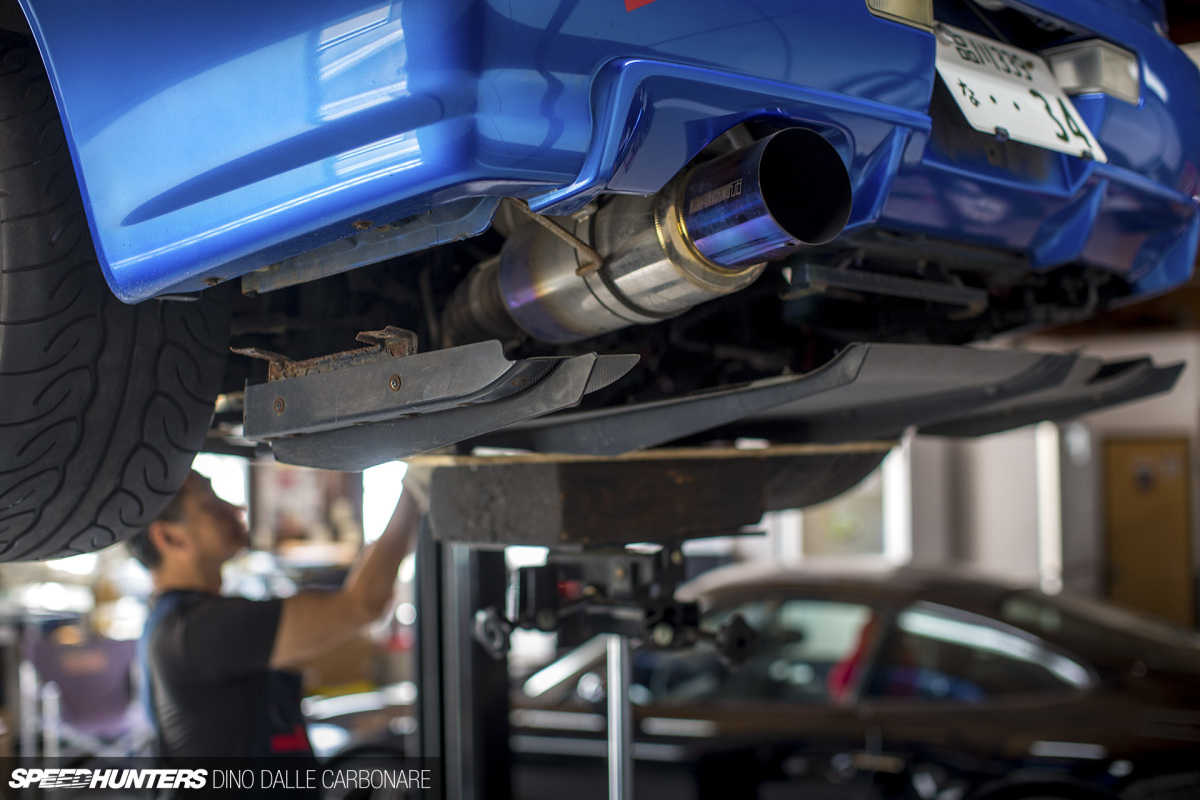

But thanks to that gearbox lift, it was all positioned and secured in around a third of the time it usually takes me with nothing but a jack.

project_gtr_kw_hls_fitting_dino_dalle_carbonare_34

So with the car back on solid ground, the KW install was well and truly completed.

While shooting and shadowing Kawanishi-san I also had my GoPro handy, so you can see some behind the scenes video of the fitting.

34HLS

The above image is GIF so you’ll probably have to open it up in its native size to see the KW HLS system doing it’s thing, which is essentially a 40mm bump in ride height. It will be enough to tackle the occasional hard-to-clear ramp, and even help me get the car into its parking spot next to my house. By throwing technology like this at the good old R34, you’re definitely are able to have the best of two worlds. Now, to start enjoying the benefits of it all!
