Project GT-R: KW-Equipped & Ready For The Touge

BNR34

Project GT-R: KW-Equipped & Ready For The Touge


Out With The Old, In With The New

You’ll be glad to hear that despite some delays, Project GT-R has been progressing behind the scenes. It’s been an exercise in patience to get the car to where it is right now, but it’s all beginning to come together.

The next few months should see the Skyline pretty much where I’ve wanted it to be for close to a year. The whole project has been sitting in limbo for so long that I’ve also not bothered to renew the shaken, which means it’s currently not legal to drive on the road. Any time I’ve needed to move the R34 has meant picking up a pair of temporary plates (the famed JDM red slash plates) or borrowing transporters from kind tuners. While the whole engine portion of the project will be addressed in July, this past month has been about one thing, and one thing only – the handling.

You might remember that KW built up a custom set of Competition coilovers made of aluminum and featuring fully adjustable racing dampers (independent in rebound and compression damping forces) and the company’s proprietary Hydraulic Lift System (HLS) at each corner. The latter is so that the car can get away with having a slightly lower driving height to get the most out of the setup, yet still be able to deal with ramps and speed bumps.

The whole fitting procedure started late last month after slight modifications were made to the coilover’s top and lower mounts following a test fit we did back at the beginning of the year. That’s what often happens when you make a high-end, custom-built kit for a car that is halfway around the world and was never officially sold in KW’s home country of Germany; sometimes a custom kit like this will require refining and tweaking until everything fits like a glove. Of course, this is something you would never have to do with KW’s model-specific kits, like the V3s that have transformed the handling on Project Drop-Top.

project_gtr_kw_fitting_dino_dalle_carbonare_01

So with parts in hand it was a short trip down to Yokohama to meet with Kawanishi-san at Kawanishi-ya, a suspension specialist long associated with KW and its products. This was the first time Kawanishi-san worked on an R34 as his customer base is mostly made up of import (Euro car) owners, but it was a challenge he was looking forward to taking up.

The first thing was to grab ride height measurements at each corner with the existing Nismo S-tune suspension fitted. This way we’d know how much to lower the car at the very end of the fitting exercise.

Kawanishi-san is a perfectionist and it was actually a very educational few days I spent at his shop while I watched him work through the install. To make things easier to follow, I will chronicle the HLS install in a separate post as it’s something that’s worth seeing in more detail. It’s another process and addition to Project GT-R that has indeed added to the whole ‘modernizing’ theme that I’ve been trying to follow for years. Trust me, the result is so cool, and I’m super-excited to be sharing it all.

project_gtr_kw_fitting_dino_dalle_carbonare_03

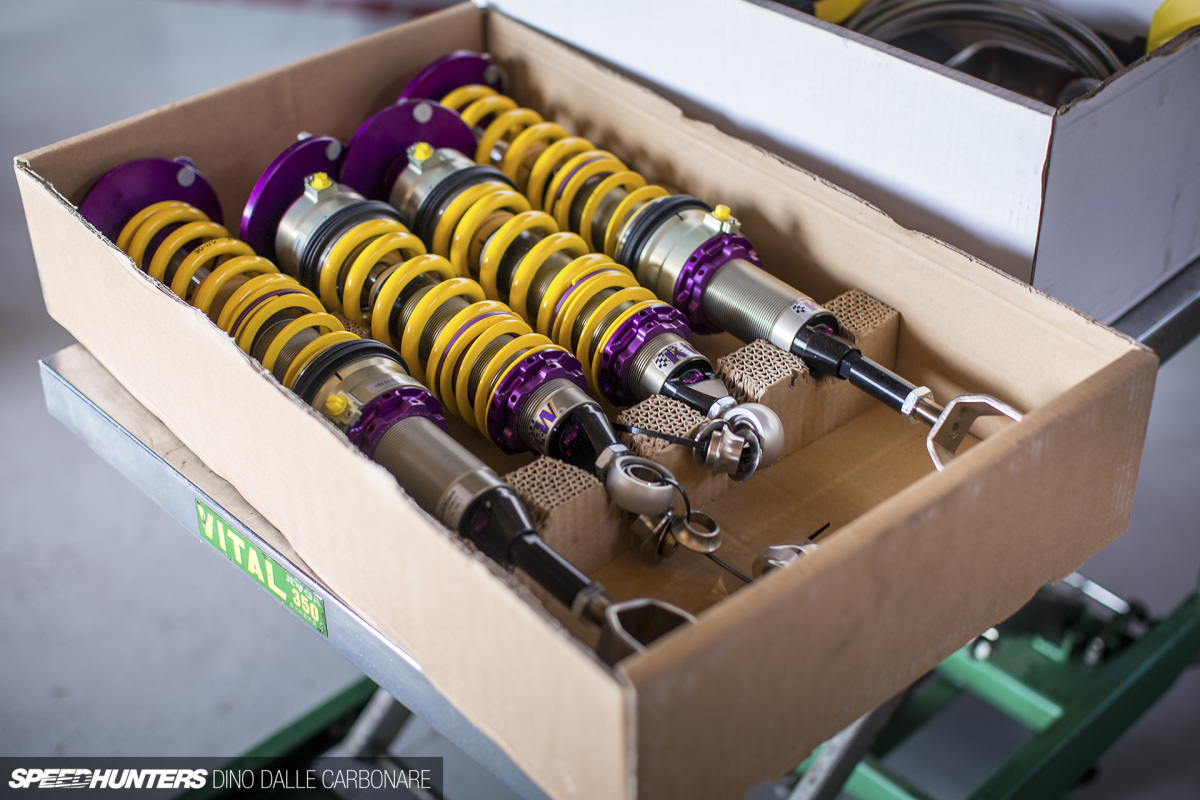

For now though, let’s get back to these beauties. I was actually quite sad that they’d be disappearing deep inside the wheel wells of the car as I’d no longer be able to admire their beauty.

project_gtr_kw_fitting_dino_dalle_carbonare_08

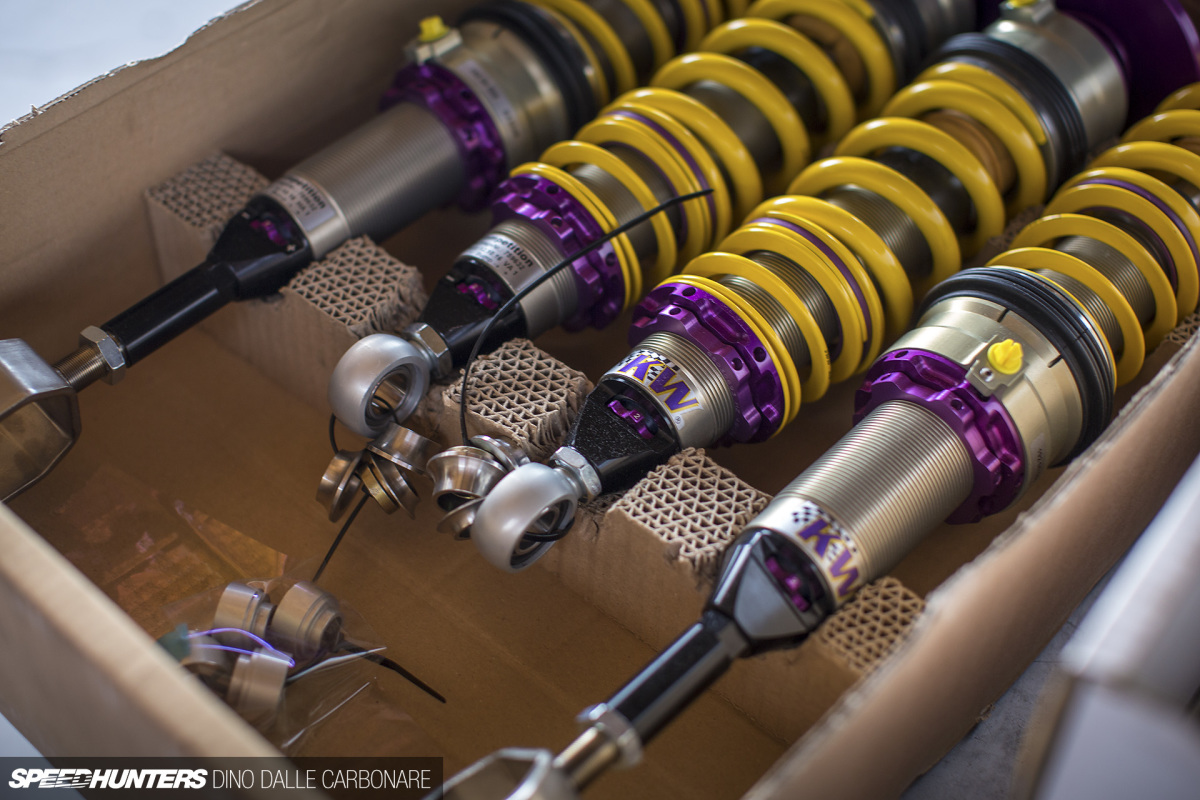

But of course, I’d have a whole new dimension of handling to explore once installed and set up. You’ll notice that compared to the unboxing post, the HLS cups of the front (shorter) shocks have been moved to the top of the dampers. It doesn’t matter where these are positioned, it’s more to do with clearance issues, which is what we had up front due to the shape of the spindles.

project_gtr_kw_fitting_dino_dalle_carbonare_04

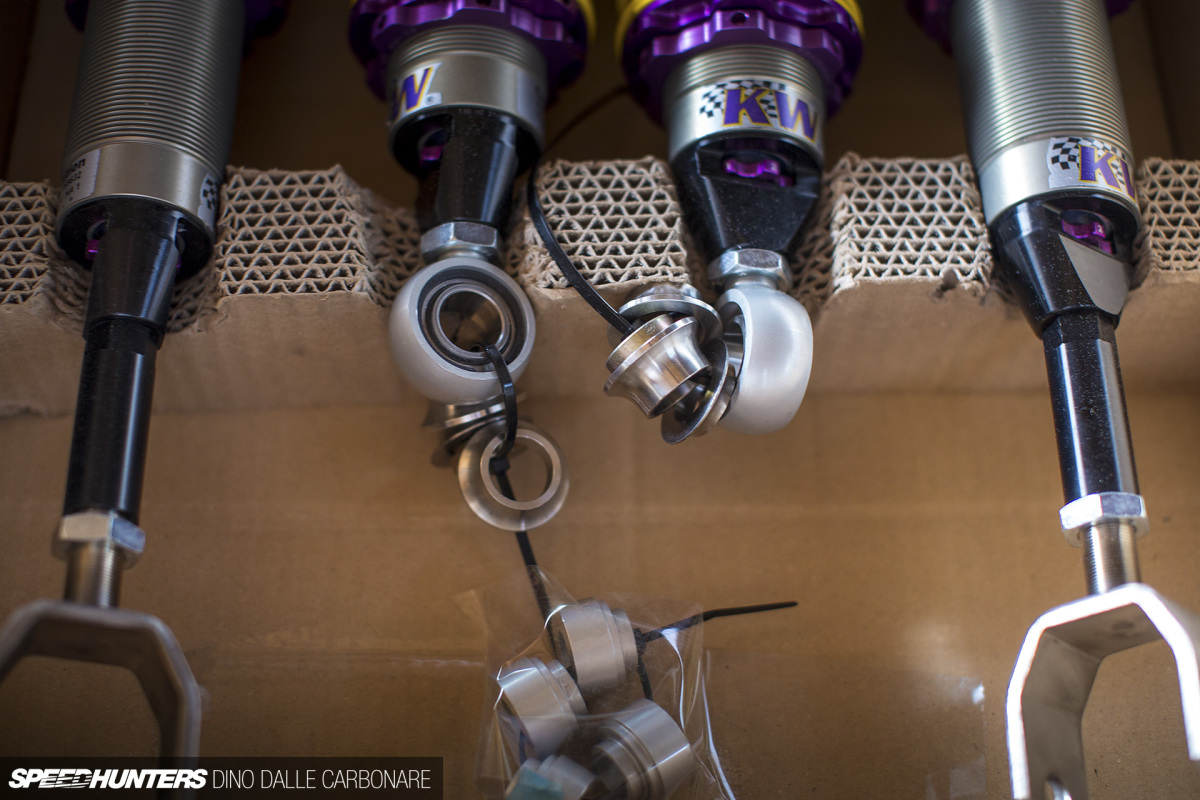

The lower mounts were also changed for a set with larger bushings and tapered spacers to lock in the caster setting. You can also see an extension in rod length to the lower mounts of the rears, but I’ll get into that later on.

project_gtr_kw_fitting_dino_dalle_carbonare_07

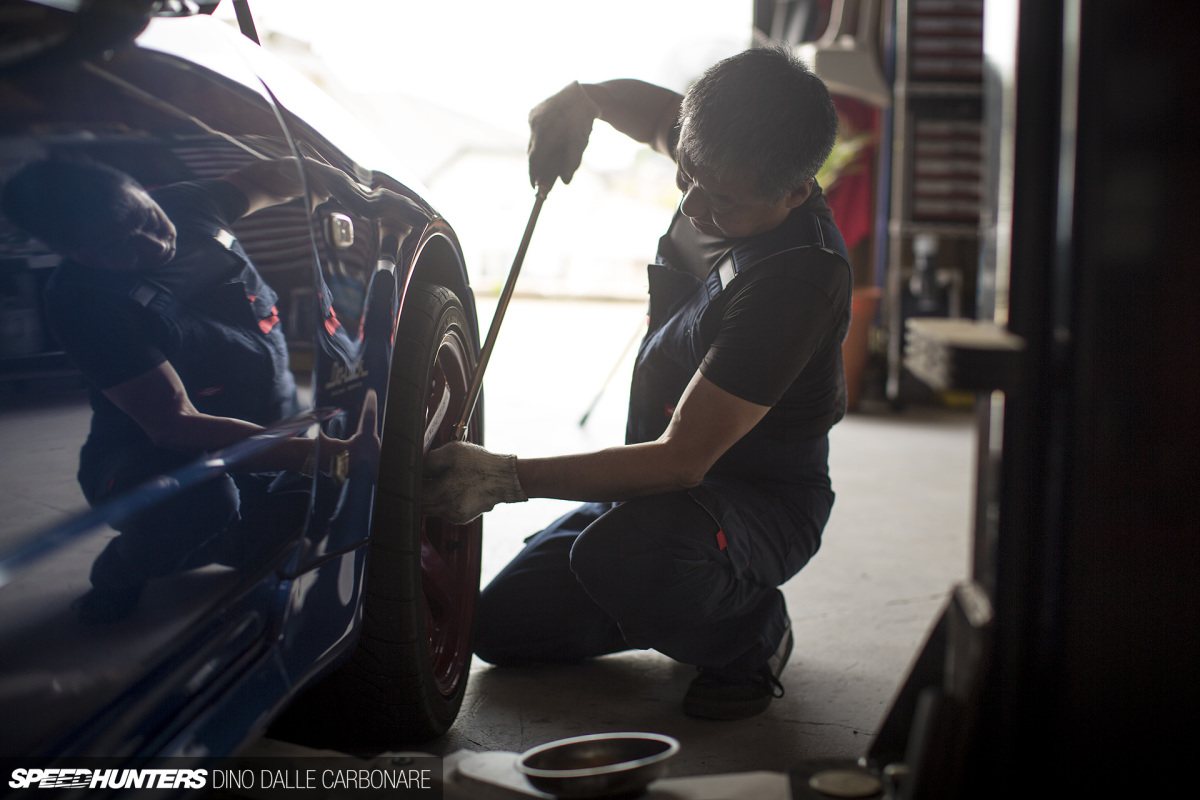

To get the ball rolling, Kawanishi-san began by setting up the car on the lift, removing all the wheel nuts and then the wheels themselves.

project_gtr_kw_fitting_dino_dalle_carbonare_09

Seeing as my 18-inch RAYS Volk Racing TE37RTs are the wheels I use for proper driving, it was these and their fitted 295-section Yokohama Advan Neova AD08Rs that the set up would be done with. The idea was to get everything squared up, lock down a rough alignment and then test the car on the Hakone Turnpike before trying out my 19-inch Volk Racing CE28Ns which are more of a street setup primarily for looks.

project_gtr_kw_fitting_dino_dalle_carbonare_10

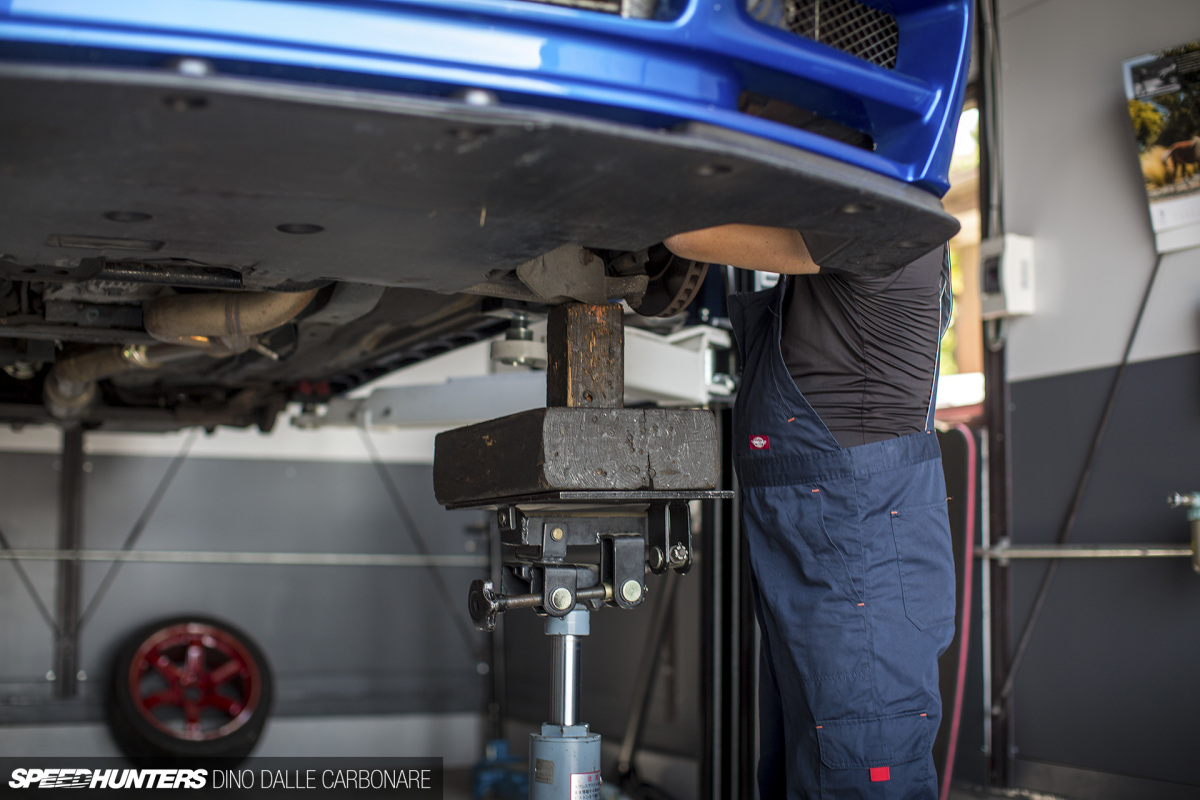

Once all wheels were removed, the GT-R was lifted up and a hydraulic jack set up with a couple of wooden blocks to compress the dampers enough to take adequate pressure off of the lower mounts. This was done at both ends and all bolts were removed prior to the car being dropped down.

project_gtr_kw_fitting_dino_dalle_carbonare_11

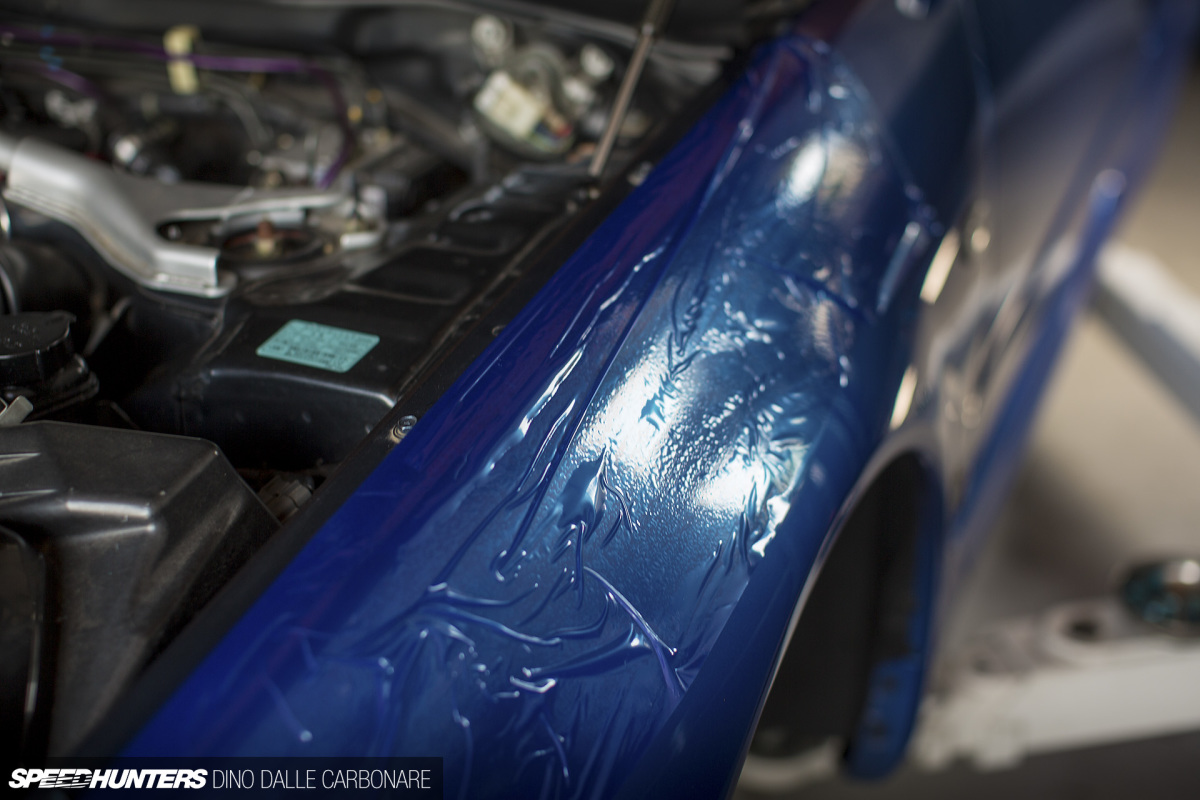

Before any wrenching started, Kawanishi-san laid down a protective strip of self-adhering plastic along the fenders. Again, I was loving the attention to detail in his process.

project_gtr_kw_fitting_dino_dalle_carbonare_12

I actually prefer to see this type of protection used over the blanket covers often draped over fenders. With the latter, any dirt or dust on the paint surface can cause minute scratches, even with slight pressure or movement.

project_gtr_kw_fitting_dino_dalle_carbonare_13

The two bolts on the top mounts were then loosened and unwound before lifting the car up again and sliding the Nismo strut assemblies out.

project_gtr_kw_fitting_dino_dalle_carbonare_14

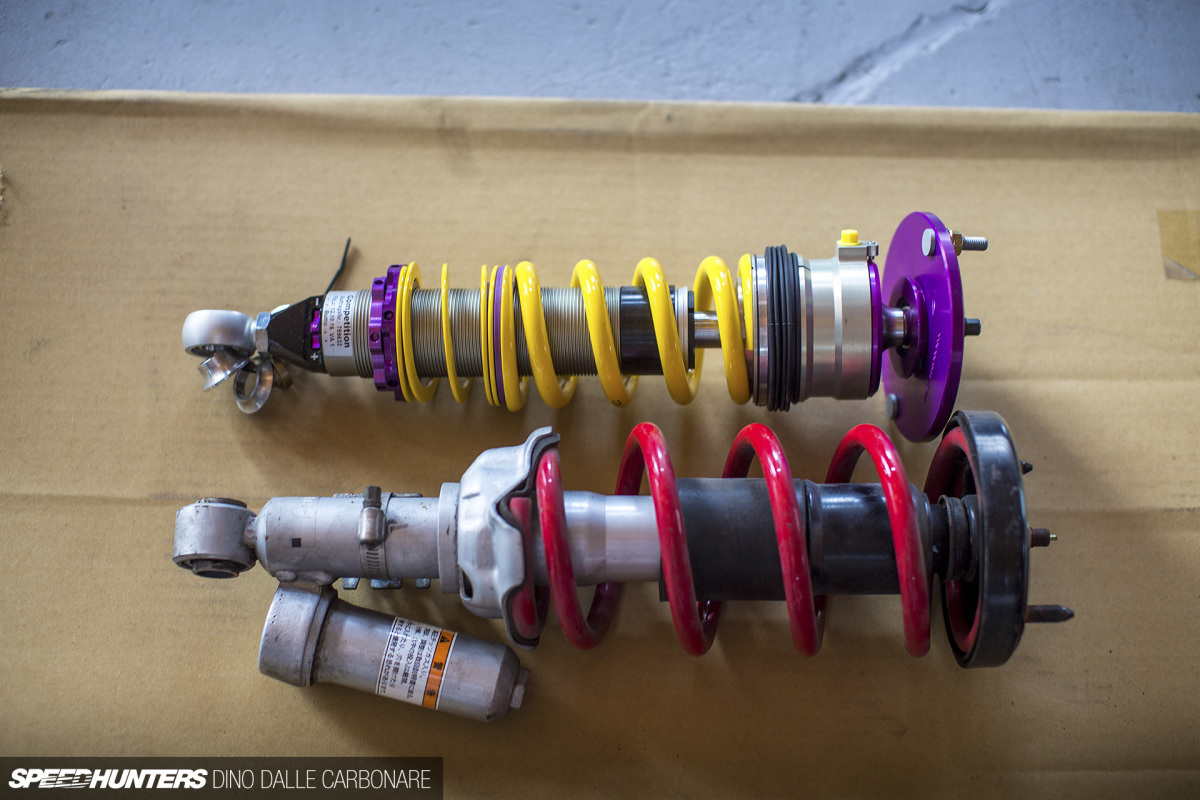

Here’s a side-by-side look at the KWs next to the Nismo S-tune fronts.

project_gtr_kw_fitting_dino_dalle_carbonare_15

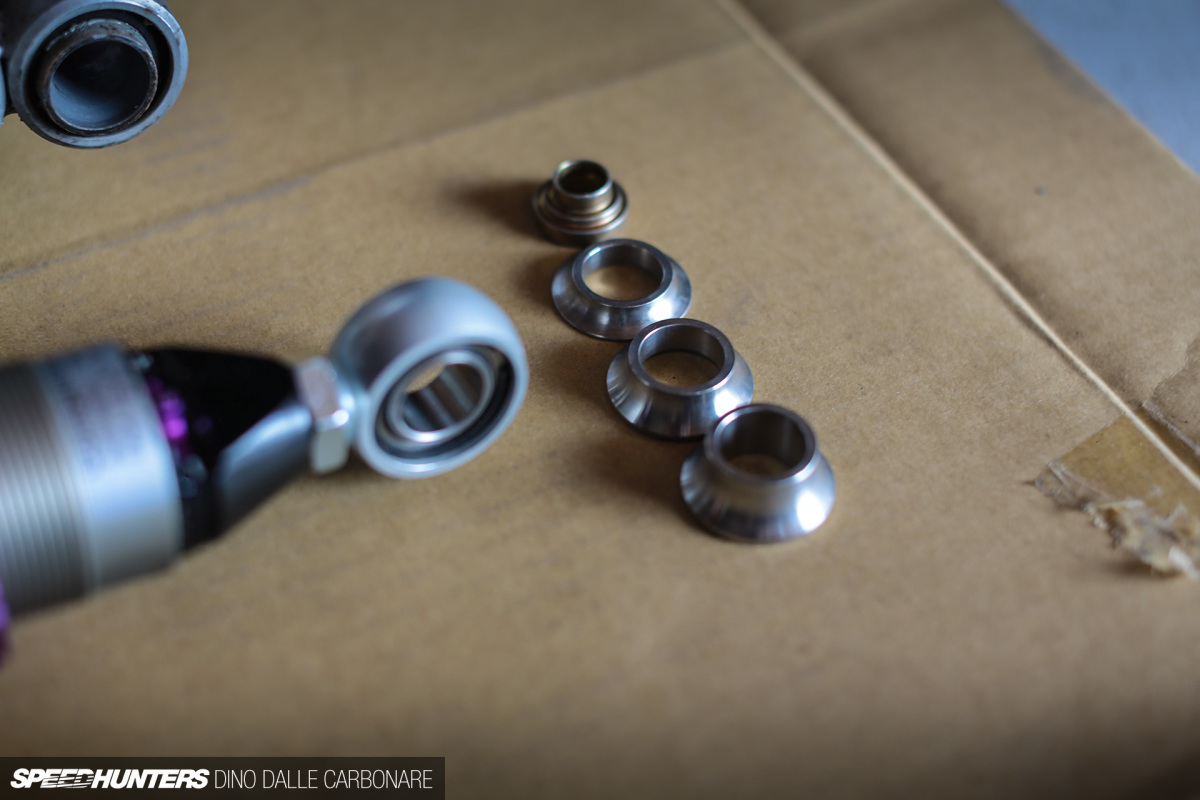

And here are the spacers to secure the lower bushed joint in place. I’m assuming the actual stiffness of the bushing itself is a little harder on the KWs, helping to completely eliminate any slack out of the handling very much like the pillow-ball upper mounts do.

With everything fitted and bolted into place, here’s how the lower mount looks like from both sides.

project_gtr_kw_fitting_dino_dalle_carbonare_18

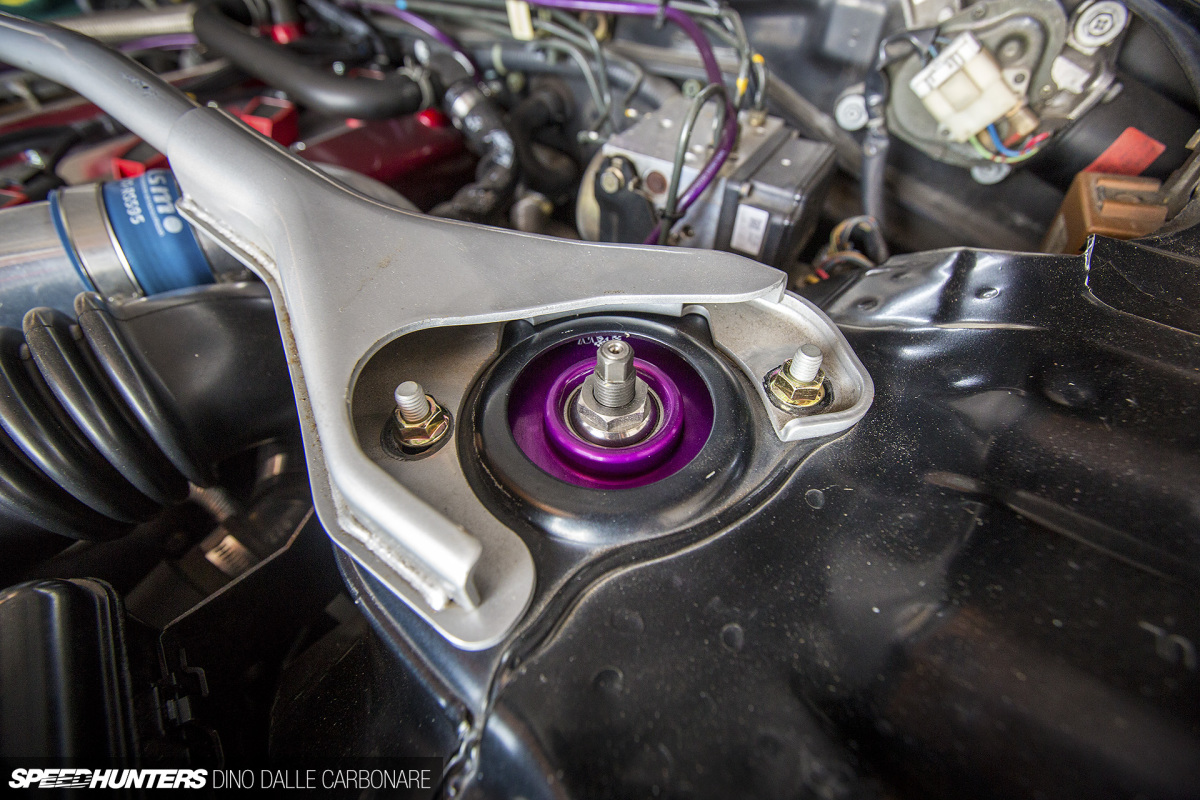

The two top bolts were then wound down in position, sandwiching the stock strut tower brace I’m still using.

project_gtr_kw_fitting_dino_dalle_carbonare_19

This is another part I will be looking at replacing in the near future.

project_gtr_kw_fitting_dino_dalle_carbonare_17

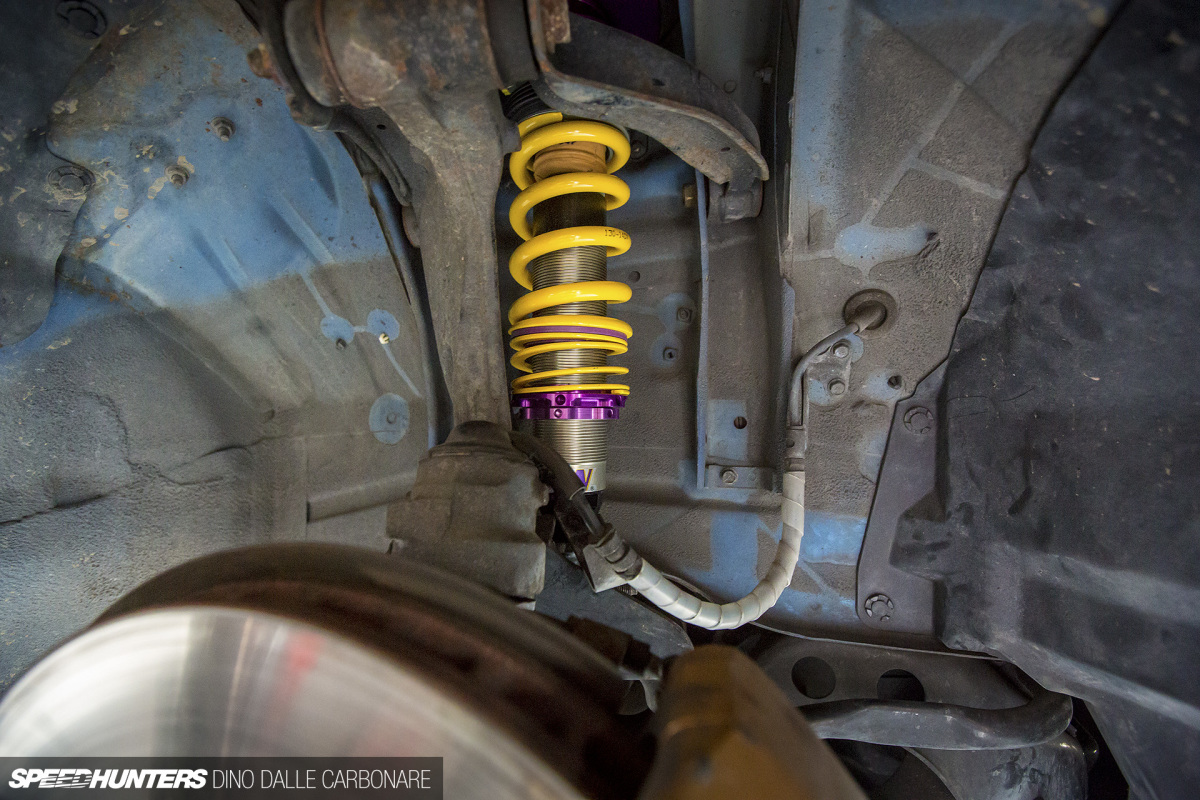

And voilà, the KWs in position looking just as beautiful as they did in the box, but a lot more purposeful now.

One thing that we didn’t think about was the brake hose support, which on the Nismo S-tunes is rather crudely tied down with a hose clamp around the lower potion of the damper. We could have moved that over, but it wouldn’t have been a good look. Not to worry though, as Kawanishi-san knew exactly what to do; he’s encountered this problem many times before.

project_gtr_kw_fitting_dino_dalle_carbonare_44

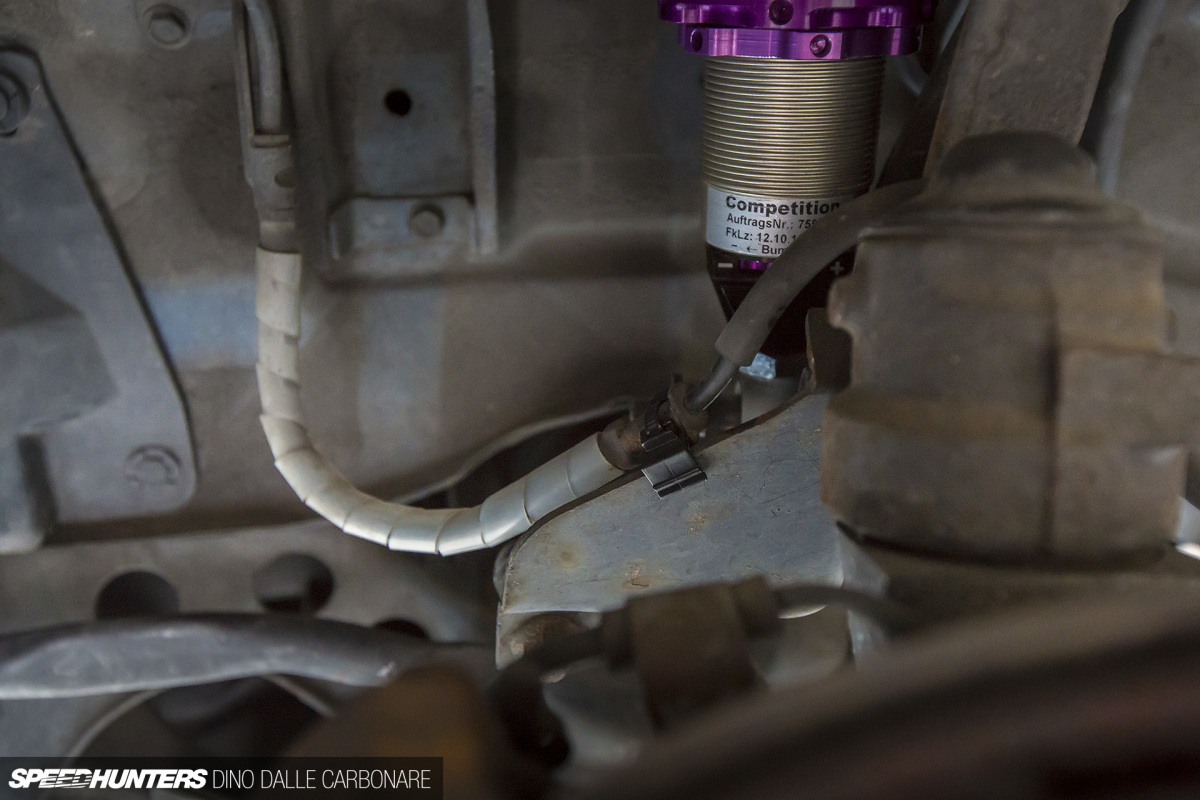

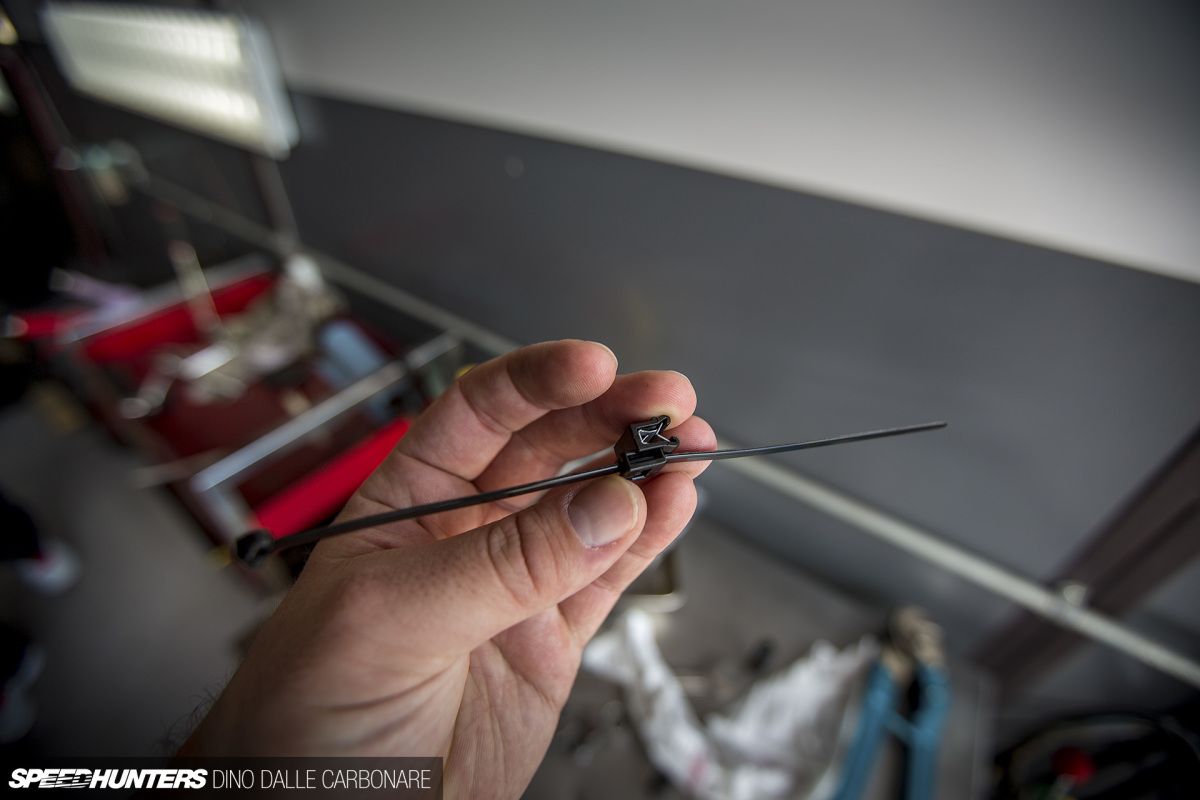

The dilemma was simply solved by these ingenious zip-ties which have a metal clamp at their centers. These also come with the HLS kit and are an easy and reliable way to secure the hoses in place.

project_gtr_kw_fitting_dino_dalle_carbonare_40

Kawanishi-san simply tied them around the same metal support area that was used with the Nismo dampers, and then pushed the metal clamp down along the edge of the metal shield that protects the lower damper mount. Job done!

The Rear Dilemma

project_gtr_kw_fitting_dino_dalle_carbonare_20

Next up was addressing the rear dampers, and this is where things got a tad more complicated. In order to get to the two bolts that hold the top mounts of the rear struts in place, the rear seat and seat back has to be removed.

project_gtr_kw_fitting_dino_dalle_carbonare_21

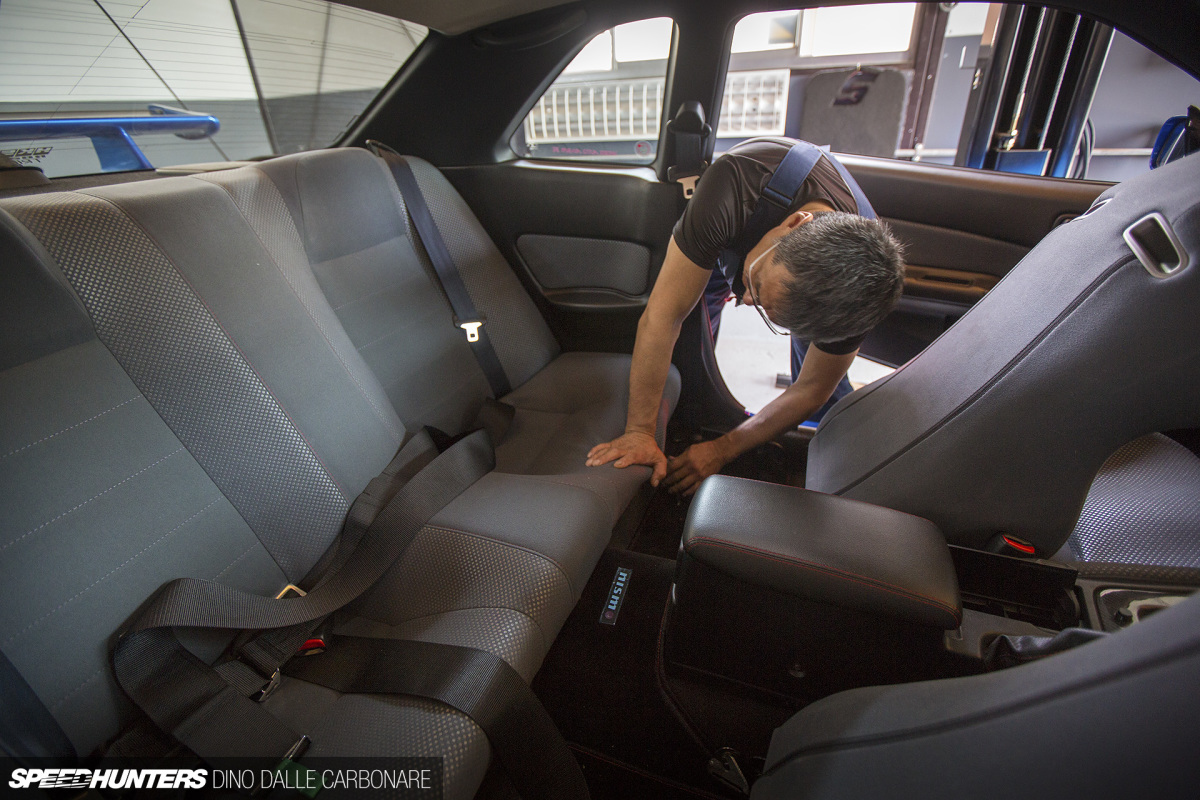

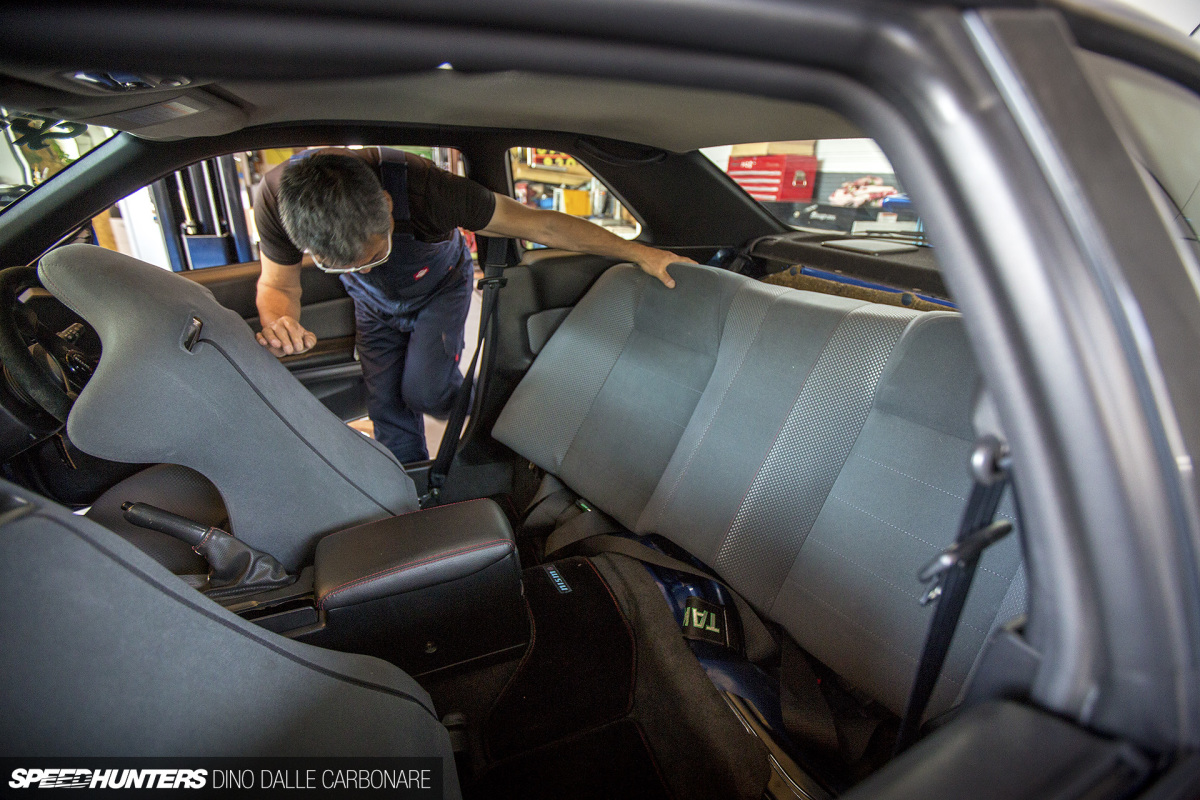

With the R34 it’s a simple enough job; you undo two bolts that hold down the seat section and then you can pull the back portion off its supports.

project_gtr_kw_fitting_dino_dalle_carbonare_27

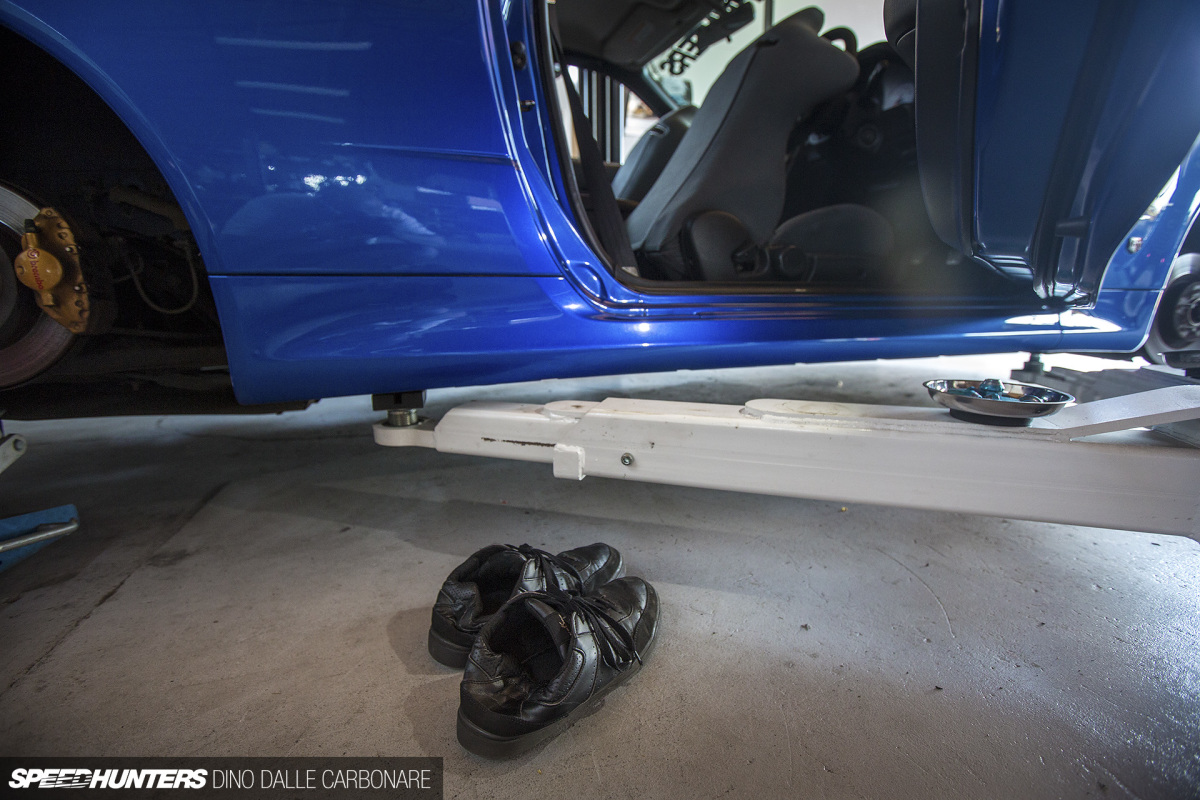

Every time Kawanishi-san stepped inside the car he would remove his shoes so as not to bring in dirt or risk getting any of the trim dirty. It’s this sort of professionalism that you often see in a lot of pro shops in Japan, and for me at least it makes a massive difference in judging the quality of an installer.

project_gtr_kw_fitting_dino_dalle_carbonare_22

With the seat back out you can reach and remove the square sponge sections that shield and absorb noise from the top mounts, and get to the bolts.

project_gtr_kw_fitting_dino_dalle_carbonare_23

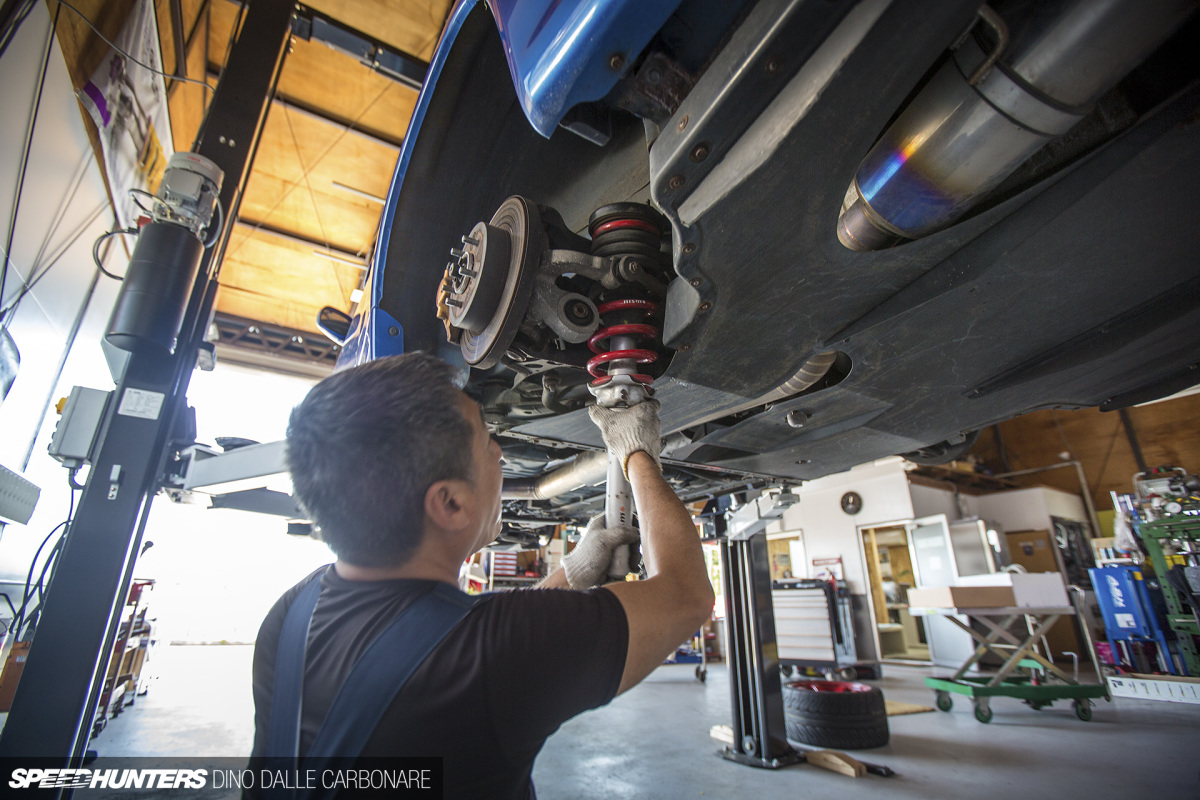

With these undone it’s only a matter of removing the single bolt that locks the damper onto the lower bushed mount.

project_gtr_kw_fitting_dino_dalle_carbonare_24

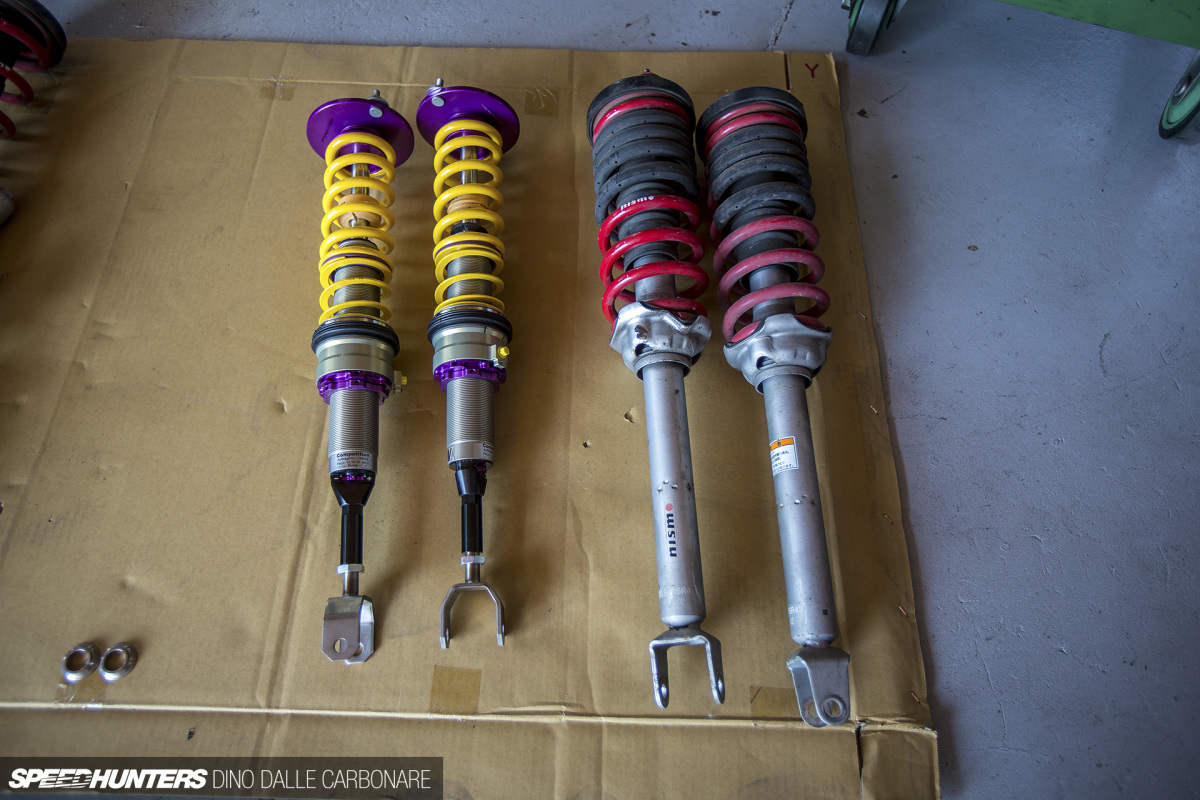

Here’s a comparison of the rear S-tunes next to the KWs. You can see that the lower mounts are wound all the way up, making the new dampers look quite a lot shorter than the Nismos. But winding them all the way out will get them up to length, or would it?

project_gtr_kw_fitting_dino_dalle_carbonare_26

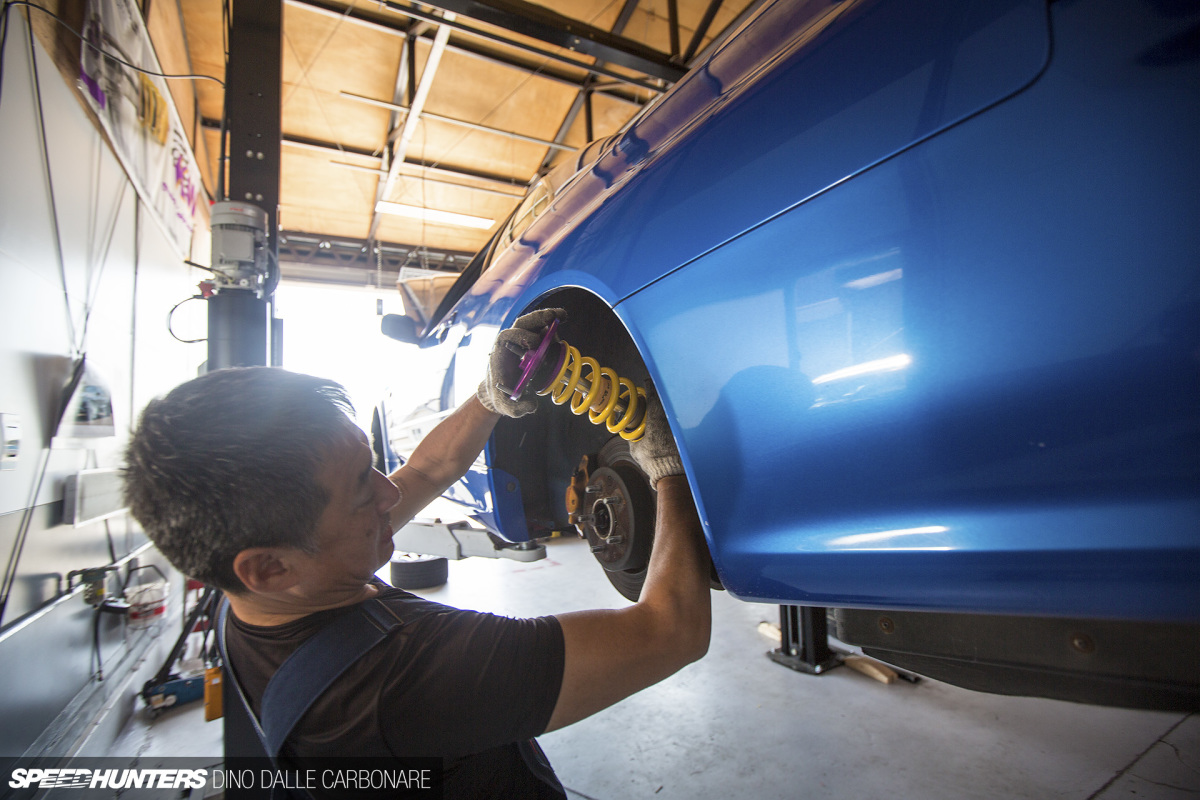

We first needed to check, because as I mentioned to Kawanishi-san, I did actually want the car to sit lower than before and the rear to drop down a little more to eliminate the raked stance the fixed-height Nismos provided. After all, the S-tunes were street-oriented and needed to factor in a bit of extra compression when the car is fully loaded with four occupants and a trunk full of shopping.

project_gtr_kw_fitting_dino_dalle_carbonare_25

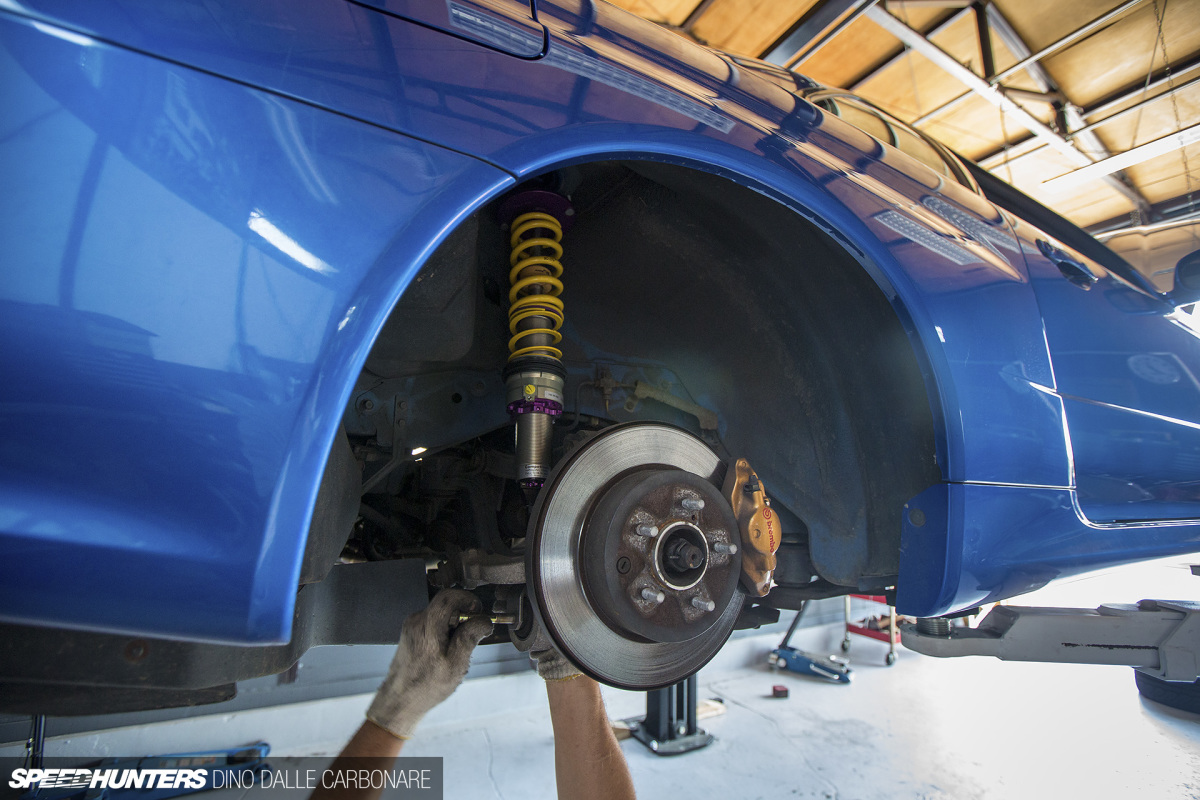

That said, we did wind it all out, and it was looking good with just enough ride height. But there was a little concern that there wasn’t that much threaded metal left inside the female portion of the lower damper mount to guarantee a safe enough setup.

project_gtr_kw_fitting_dino_dalle_carbonare_28

And this is where the guys at KW in Germany shined for their service. I got into contact with them the same night and by the next day they were machining new and extended lower mounts. They were sent out shortly after that and less than a week later were in my hands at Kawanishi-ya in Yokohama.

KW Service Wins

project_gtr_kw_fitting_dino_dalle_carbonare_29

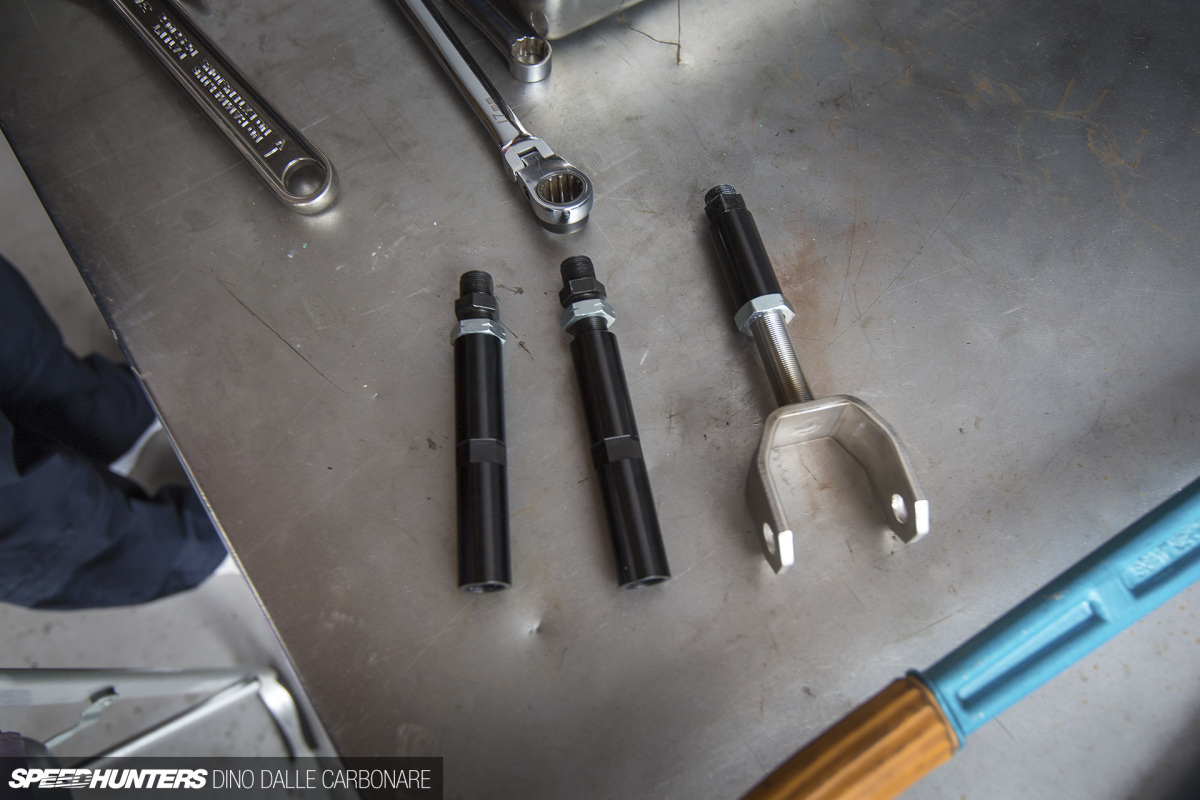

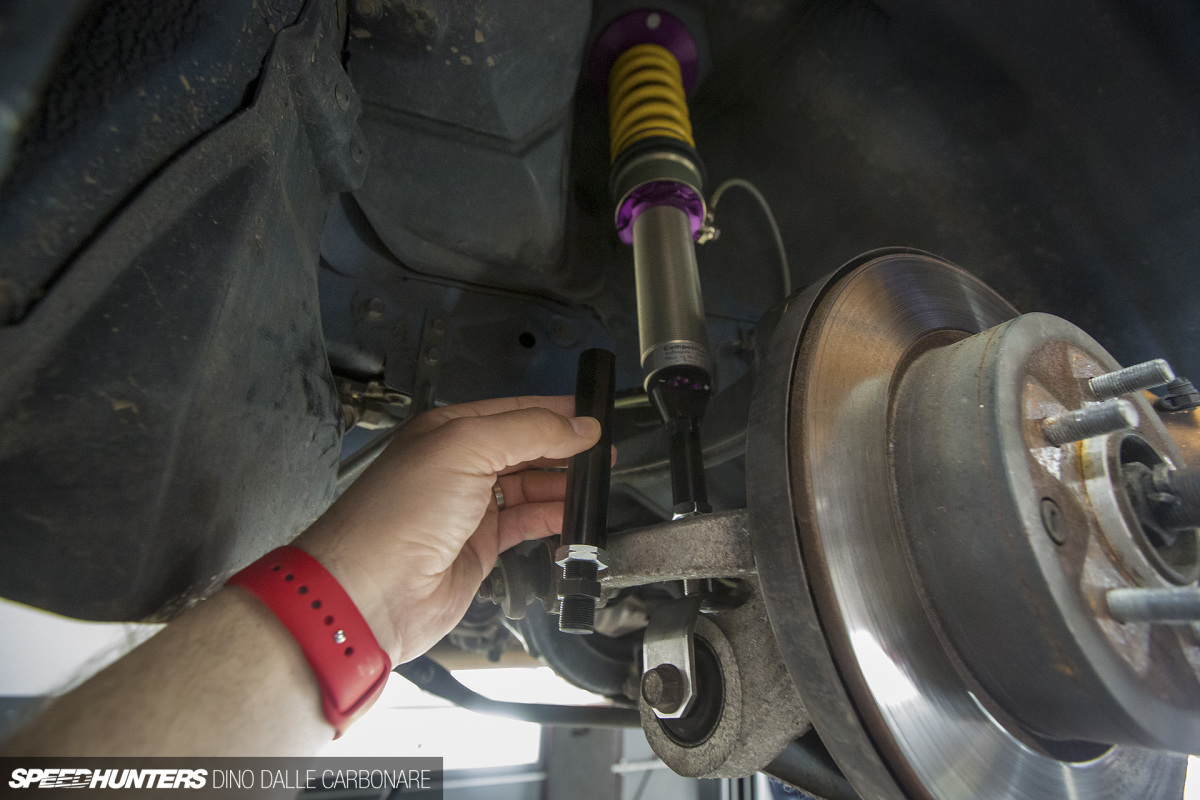

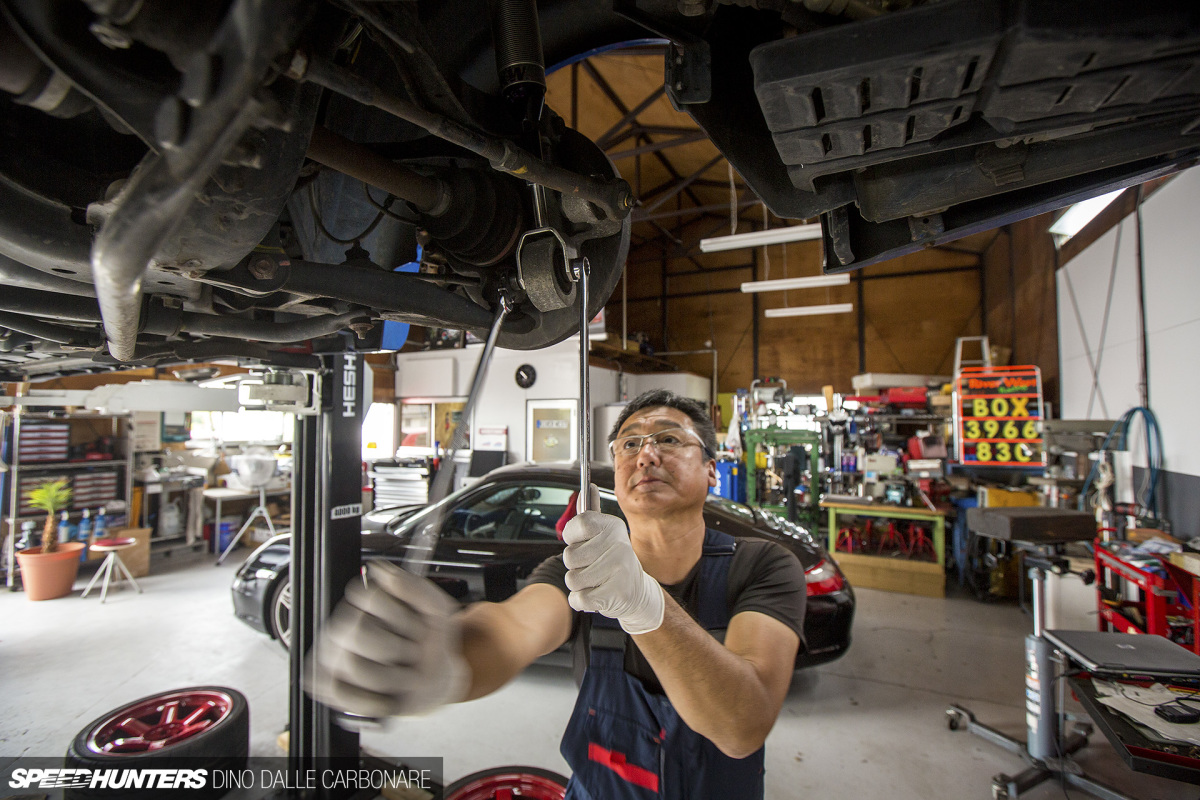

The massive bolts that hold the lower portion of the rear dampers in place were then removed and Kawanishi-san decided to swap the new rods in with the dampers still installed.

project_gtr_kw_fitting_dino_dalle_carbonare_30

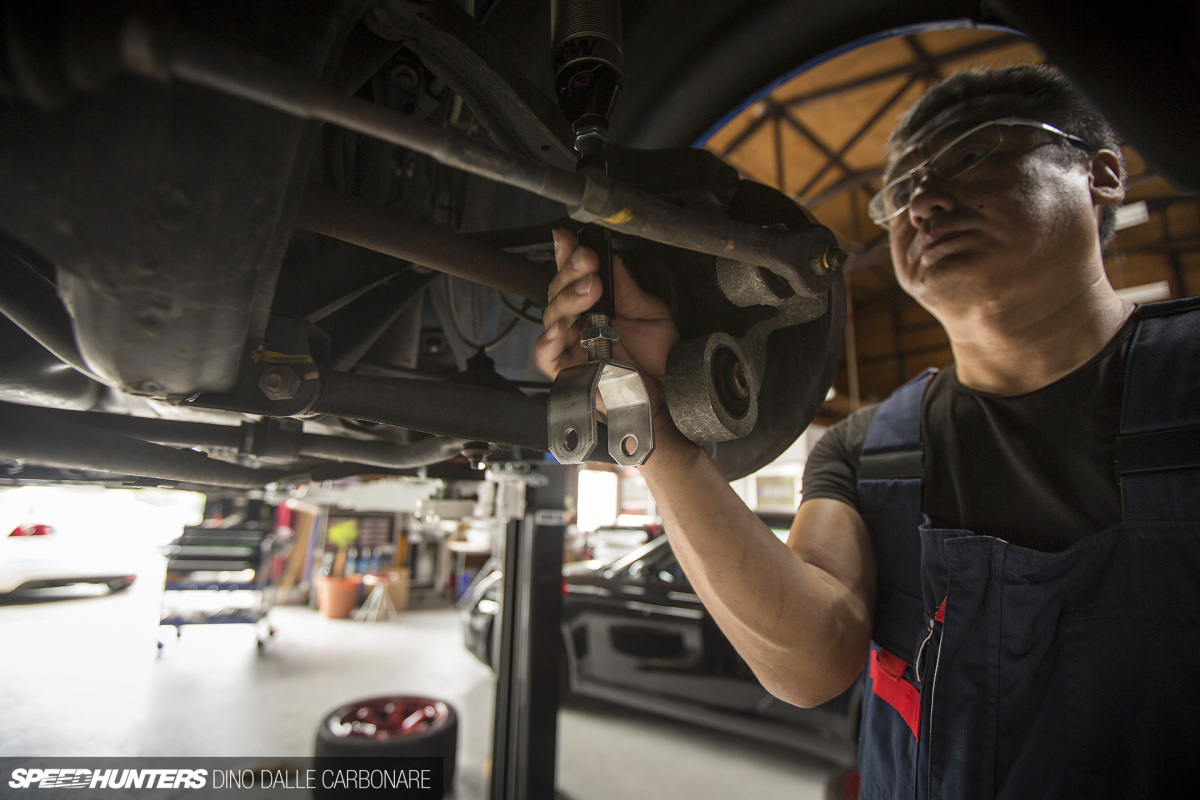

It was just a question of swapping over the lower U-mount and bolting everything in place.

project_gtr_kw_fitting_dino_dalle_carbonare_31

Of course, it was a little but more complex as there was a lot of measuring that was going on while I fumbled around with my camera and updated my IG feed.

project_gtr_kw_fitting_dino_dalle_carbonare_32

The dampers were then compressed and the bolt slid in again.

project_gtr_kw_fitting_dino_dalle_carbonare_41

Finally, everything was torqued up and rechecked with typical Japanese precision.

The wheels were then refitted and the car dropped onto the new suspension to ensure that everything would bed in properly. Then, the wheels came off again and the car was lifted for another remeasure to get the ride height spot on. We measured for a 12mm lowering at the front and a 17mm drop at the rear as a start point.

project_gtr_kw_fitting_dino_dalle_carbonare_33

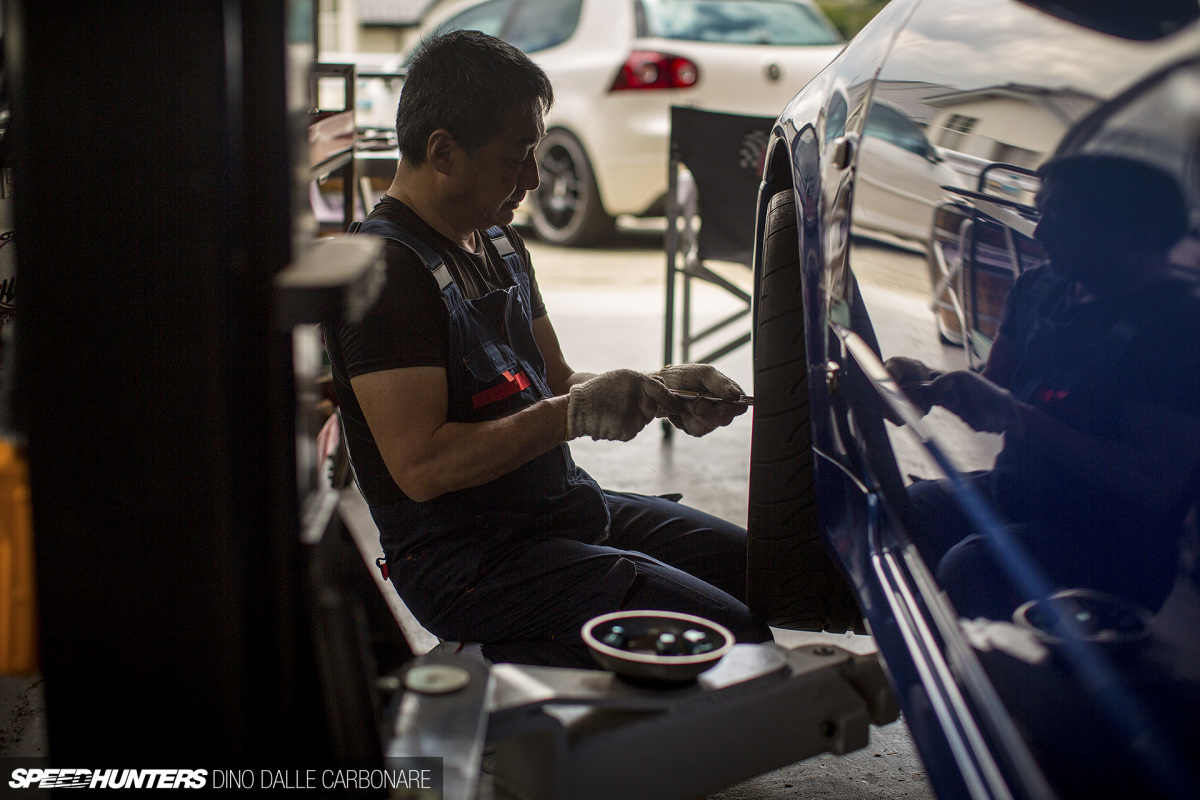

The TE37RTs were refitted for one last time, and then the car was ready for a test drive.

project_gtr_kw_fitting_dino_dalle_carbonare_37

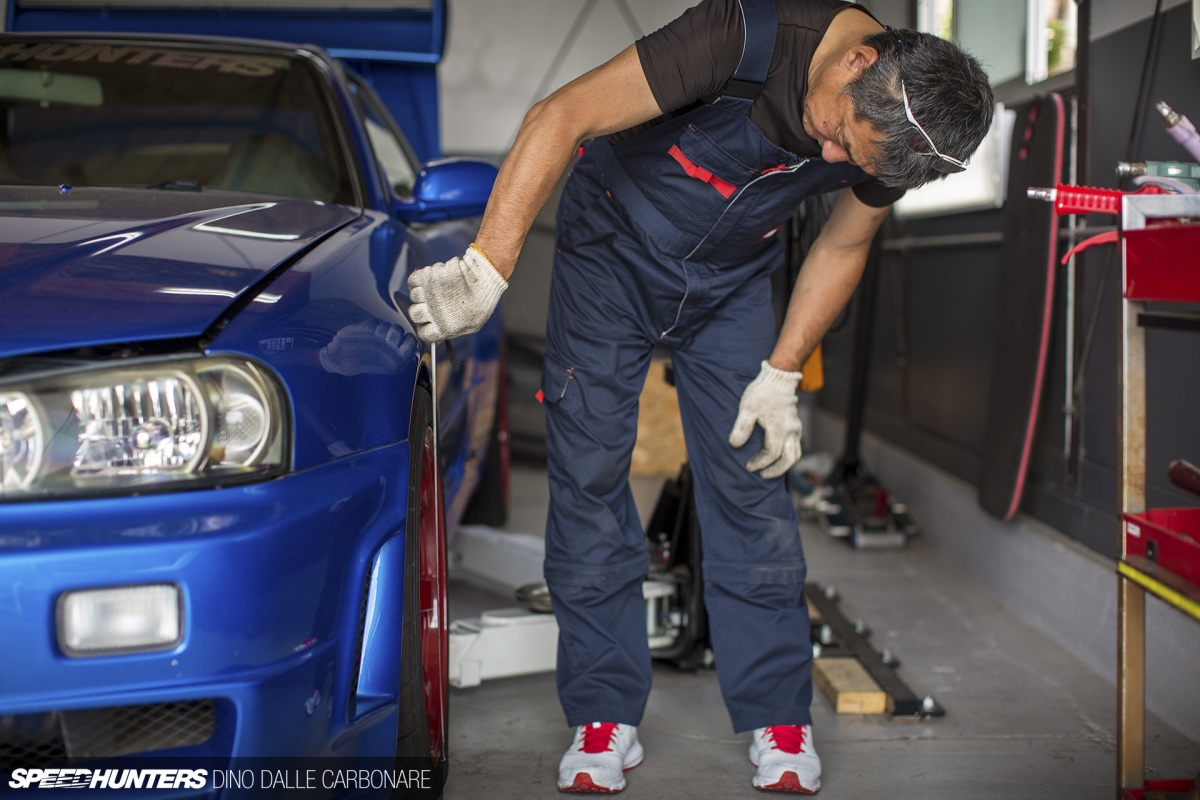

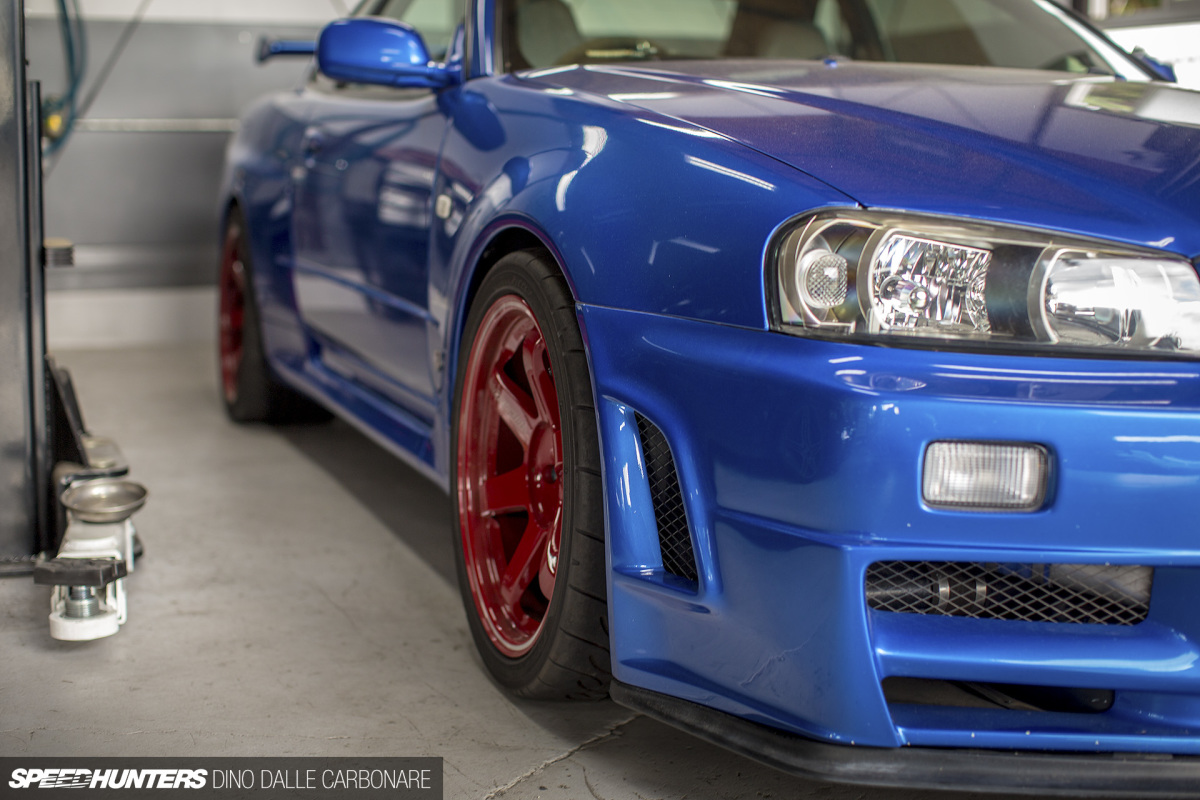

I took it out for a short drive on the roads surrounding the shop to get things bedded in a bit more, then brought it back inside for a final measure.

project_gtr_kw_fitting_dino_dalle_carbonare_38

Aside from the fact that it now sits a little tighter with the wheels and looks way better, it was that initial drive that was a true realization. Even at slow speeds and around narrow streets the car felt transformed; everything is more direct, sharper and reactive, right down to how precise the steering feels a millimeter off center. Yes, the racing springs and motorsport dampers are harder and there is more noise and vibration from the tarmac getting into the cabin, but it just feels a little rawer, in a rather welcome kind of way. After all, it’s a brutally functional racing setup, and what race car drivers out there care about noise? It’s precisely what I wanted. Impressively enough, the stiffer ride doesn’t seem to be intrusive; the dampers still deal with imperfections in a compliant way which is all down to KW’s signature blow-off features of the compression valves. I guess that’s also something you unexpectedly get from high-end, custom-built racing suspension like this.

But that’s where the impressions end. The test drive was short and there was still the HLS system to get to, so as excited as I was, the san-yon had another day’s worth of work waiting to be done. You can read all about that in my next post.
